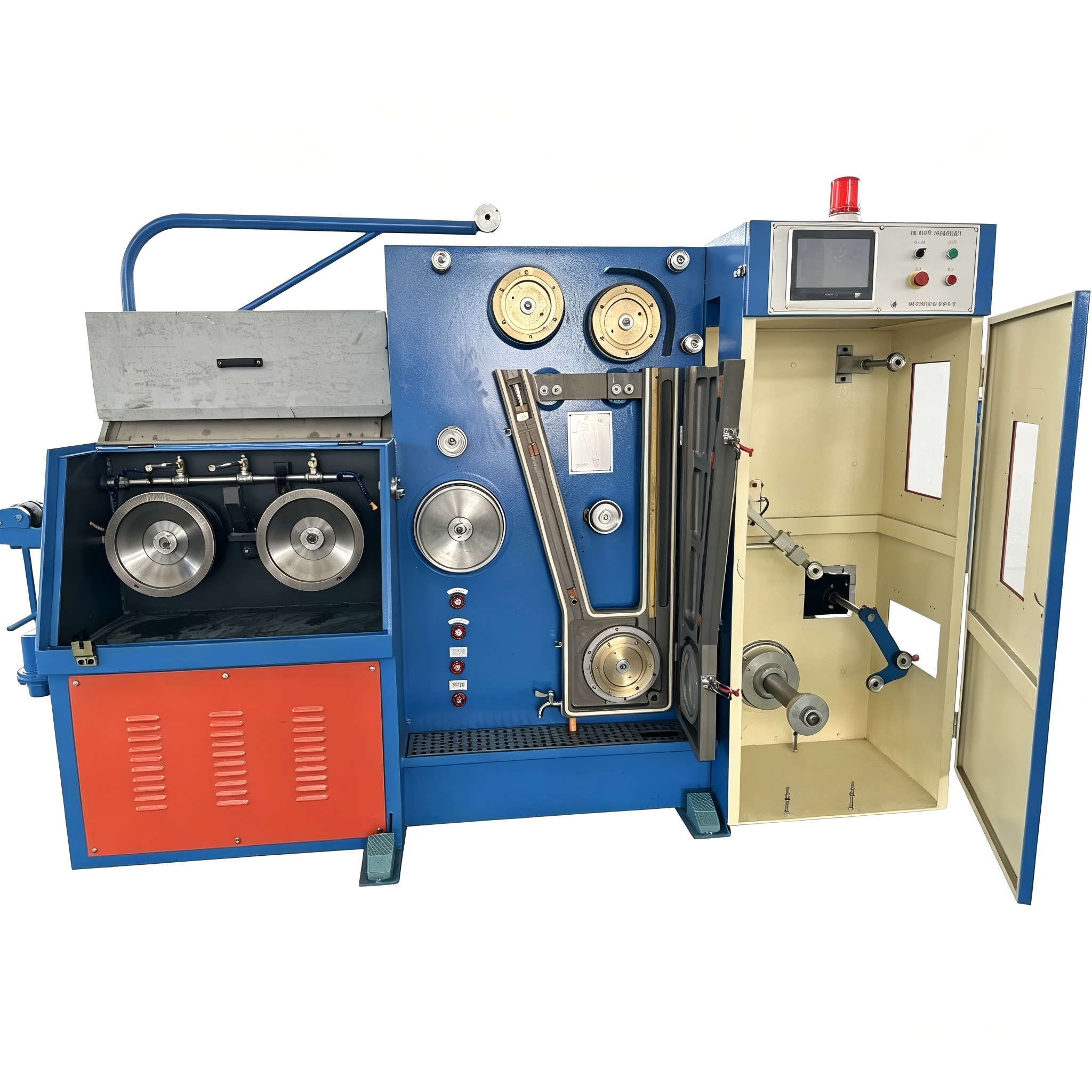

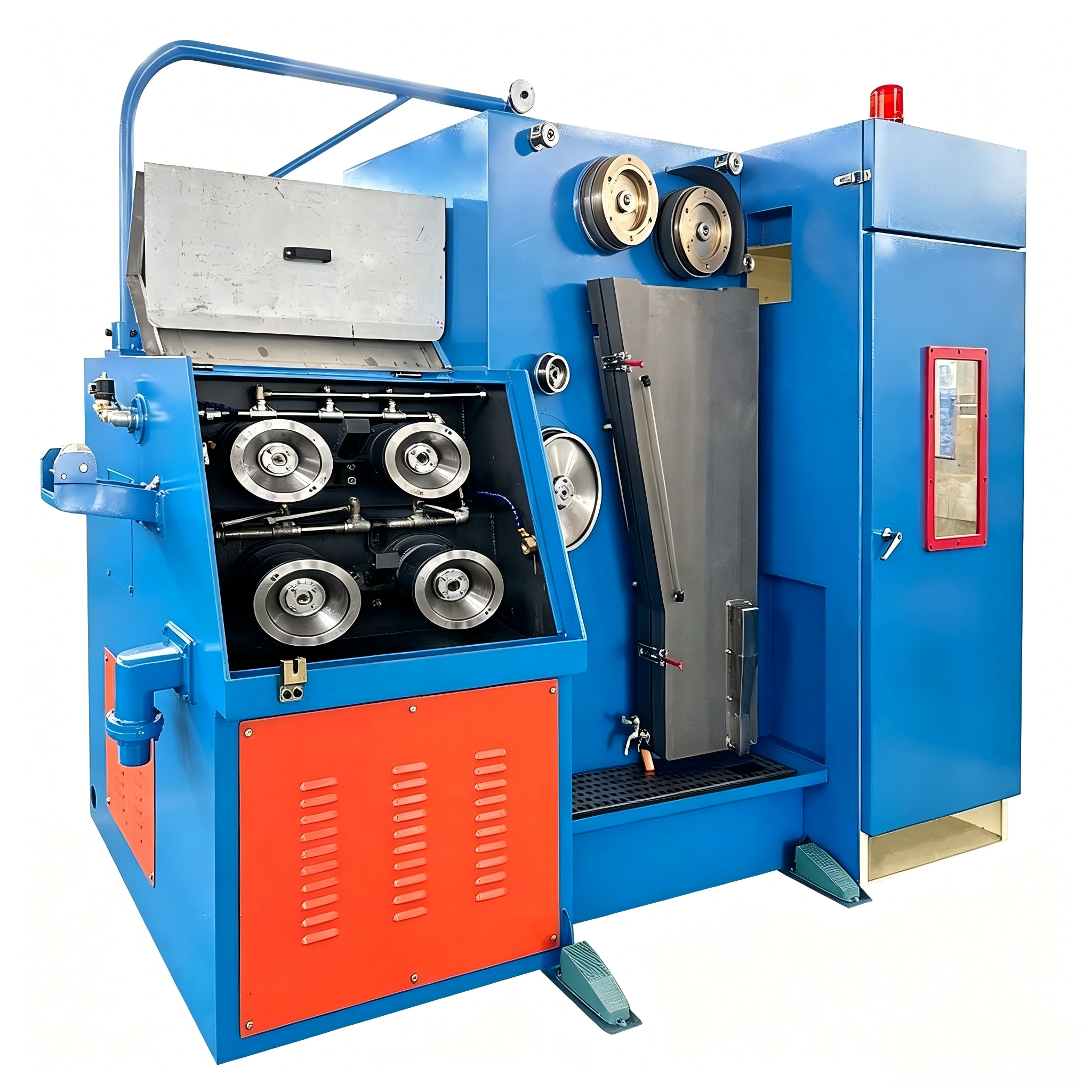

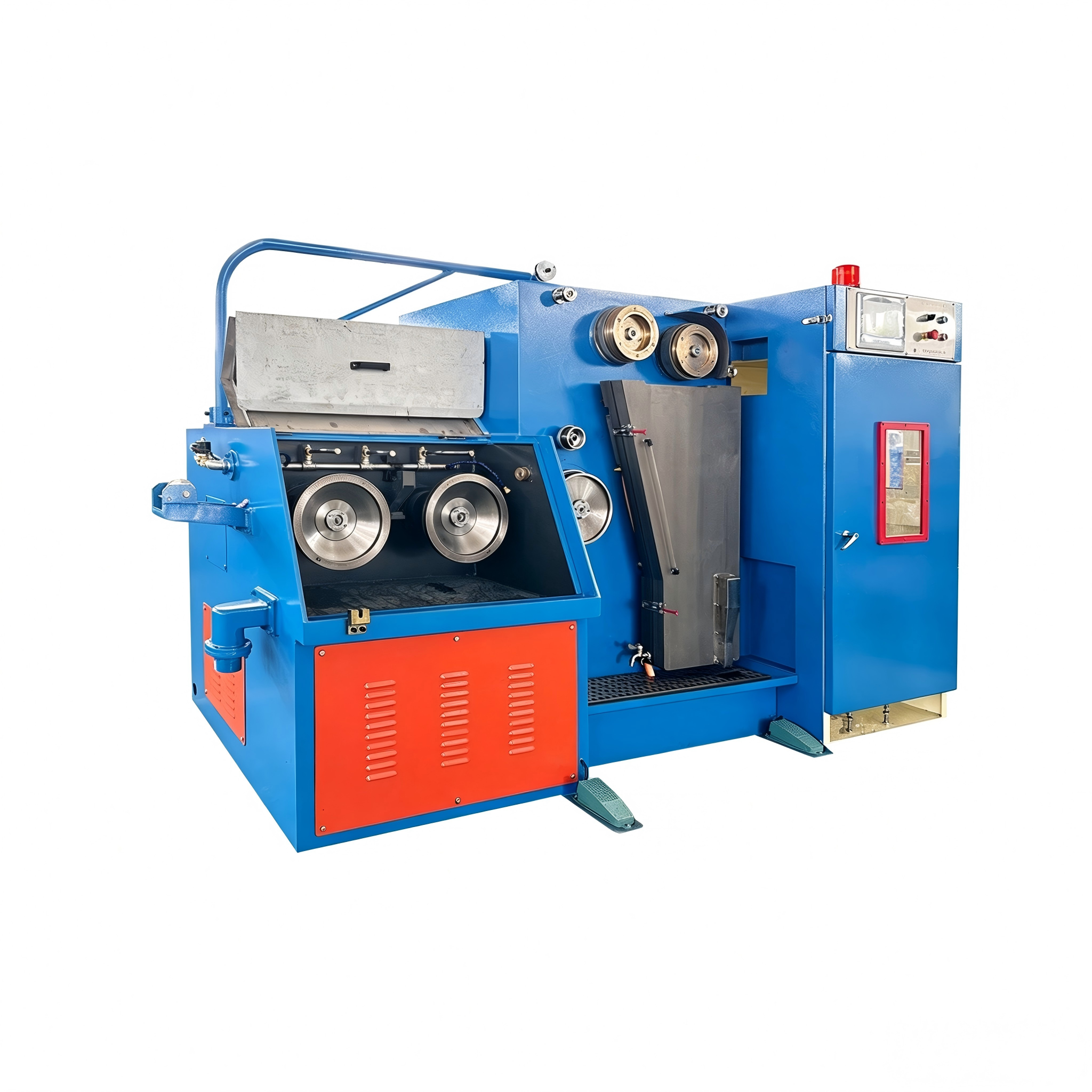

JK-22/24/14/20D Fine & Medium-Fine Multi-Wire Drawing Machine with Continuous Annealer
Description
| Machine Model | JK-22DT | JK-24DT | JK-14DT | JK-20DAT |
| Electric Control Mode | Analog Button Motor Control
| |||
| Finished Wire Diameter | Φ0.1–Φ0.32 mm | Φ0.1–Φ0.25 mm | Φ0.30–Φ0.80 mm | Φ0.15–Φ0.70 mm |
| Inlet Wire Diameter | Φ0.6–Φ1.2 mm | Φ0.5–Φ1.0 mm | Φ0.8–Φ1.6 mm | Φ0.8–1.6 mm |
| Maximum Drawing Speed | Max 2000 mpm/min | Max 2000 mpm/min | Max 1200 mpm/min | Max 1800 mpm/min |
| Max. Number of Drawing Dies | 22 | 24 | 14 | 20 |
| Mechanical Area Reduction Rate | 15%+8% | 13%+8% | 15%+8% | 15%+8% |
| Machine Frame Structure | Welded Steel Plate with Stress Relief Annealing
| |||
| Drawing Capstan | Ceramic / Tungsten Carbide Coated Capstan
| |||
| Take-up Bobbin Size | Φ300mm (Customizable per customer’s requirement)
| |||
| Bobbin Loading & Unloading Mode | Screw Tightening Thimble Loading
| |||
| Max Copper Loading Weight | Max 50 KG
| |||
| Annealing Mode | DC Three-stage Annealing
| |||
| Main Motor Power | 11 KW | 11 KW | 15 KW, 6P | 15 KW |
| Take-up Spooler Motor Power | 3.7 KW | 3.7 KW | 5.5 KW | 5.5 KW |
| Max. Annealing Current | DC 250 A | DC 250 A | DC 600 A | DC 600 A |
| Max. Annealing Voltage | DC 55 V | DC 55 V | DC 60 V | DC 60 V |
| Annealing Power | 13 KVA | 13 KVA | 36 KVA | 36 KVA |
| Steam Output | 8 kg/h | 8 kg/h | 10 kg/h | 10 kg/h |
| Annealing Cooling Water Flow Rate | 150 L/min | 150 L/min | 250 L/min | 250 L/min |
| Overall Dimensions (L×W×H) | 2100×1600×1700 mm | 2100×1600×1700 mm | 2100×1600×1900 mm | 3020×1688×2015 mm |
| Machine Weight (kg) | 3000 KG | 3000 KG | 3200 KG | 4000 KG |
