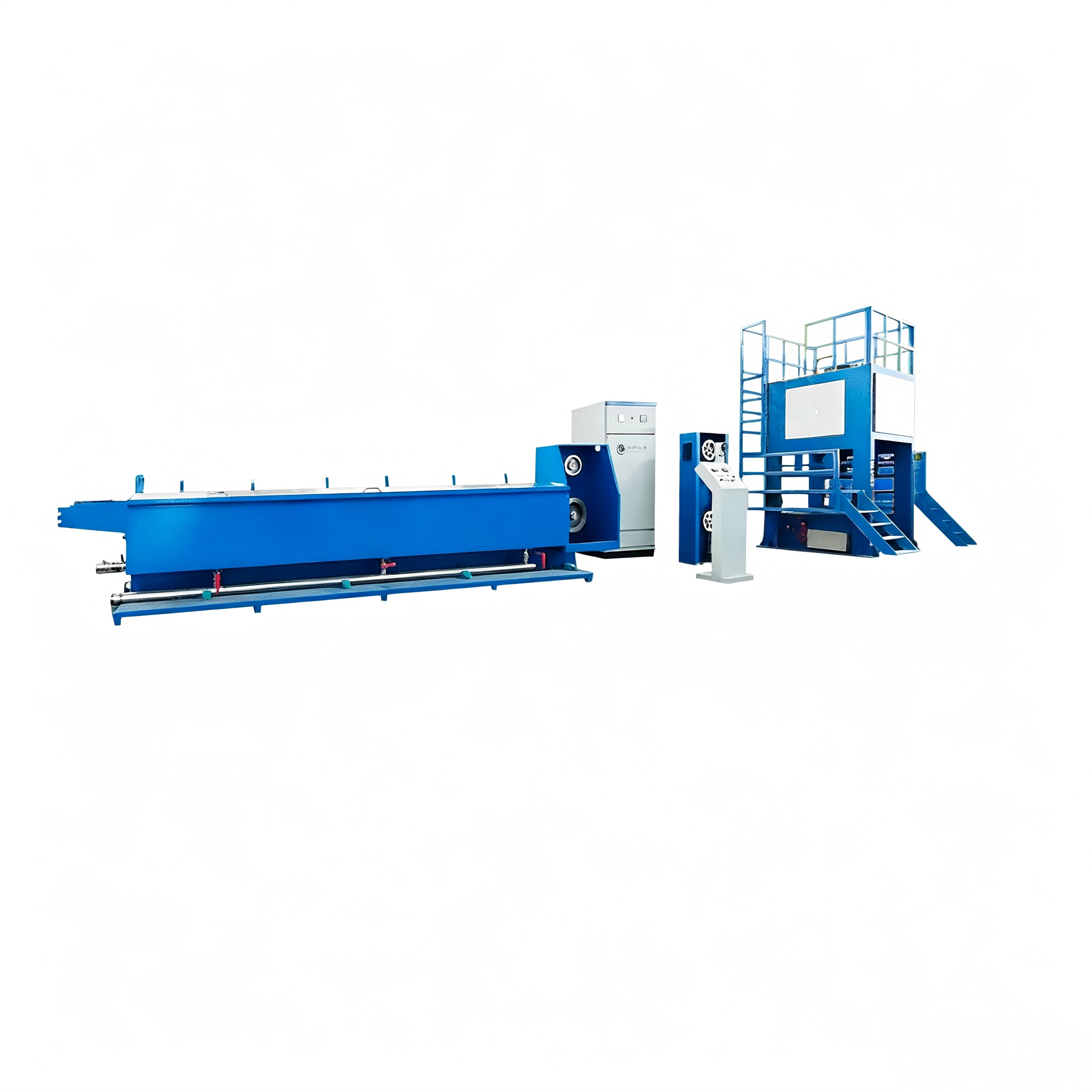

400-9/13D In-line Medium-Speed Large Wire Drawing Machine
This machine is a sliding type wire drawing machine adopting single-row straight drawing structure with equal-diameter capstans.
▶ It adopts multi-stage gear transmission. The gears are precision ground cylindrical helical gears, and the bearing assembly consists of a pair of tapered roller bearings matched with a pair of ball bearings.
▶ It applies oil-immersed cooling and lubrication for wire drawing. All drawing capstans are of insert assembly structure, and the rim surface is sprayed with tungsten carbide coating.
▶ The take-up machine is equipped with looping off-line device, supporting dual-spool continuous spider-type take-up.
▶ Both the main motor and take-up motor adopt frequency conversion speed regulation.
| Machine Model | JK-9D | JK-13D |
| Finished Wire Diameter | Φ3.2-Φ2.4mm/MAX Copper Wire Φ4.5-Φ3.0mm/MAX Aluminum Wire | Φ3.0–Φ1.4mm/MAX Copper Wire Φ4.7-Φ1.8mm/MAX Aluminum Wire |
| Inlet Wire Diameter | Φ8.0mm/MAX Copper Wire Φ9.5mm/MAX Aluminum Wire | Φ8.0mm/MAX Copper Wire Φ9.5mm/MAX Aluminum Wire |
| Maximum Drawing Speed | 8-9m/s | 12-13m/s |
| Max. Number of Drawing Dies | 9 | 13 |
| Mechanical Elongation Coefficient | 1.2-1.37 | 1.2-1.35 |
| Fixed Capstan Diameter | Φ400mm | |
| Number of Cone Pulleys | 9n | 13n |
| Transmission Mode | Precision Ground Gear Drive | |
| Main Motor Power | AC132KW | AC160KW |
| Take-up Mode | Spider-type take-up | |
| Speed Regulation Mode | Frequency Inverter Control | |
| Take-up Spooler Motor Power | 400/9：AC 15 kW 6P | 400/13：AC 18.5 kW | |
| Wire Drawing Lubrication Mode | Full Dip Lubrication | |
| Lubricant Oil Flow Rate
| 500 L/min (Liters Per Minute) | 1000 L/min (Liters Per Minute) |
| Bearing Lubrication Mode | Forced Oil Lubrication by Oil Pump | |
| Optional Equipments | Continuous Annealing Machine, Spider Type Coiler, Single Spool Take-up, Dual Spool Automatic Coil Changing Take-up Machine | |
| Overall Dimensions (L×W×H) | 5400(L)*1450(W)*1020(H)mm | 8700(L)*1200(W)*1200(H)mm |
| Machine Weight(kg) | 6000KG | 6000KG |
