450-9/13D Low Speed Cone Pulley Type Rod Breakdown Machine
Description
| Machine Model | JK-450/9D(Cone Pulley Type) | JK-450/13D(Cone Pulley Type) |
| Finished Wire Diameter | Φ3.0-Φ2.6mm/Copper Wire Φ4.5-Φ3.0mm/Aluminum wire | Φ3.0-Φ2.0mm/MAX Copper wire Φ4.7-Φ1.8mm/MAX Aluminum wire |
| Inlet Wire Diameter | Φ8.0mm/MAX Copper wire Φ9.5mm/MAX Aluminum wire | Φ8.0mm/MAX Copper wire Φ9.5mm/MAX Aluminum wire |
| Maximum Drawing Speed | 5-6.5m/s | 8-9m/s |
| Max. Number of Drawing Dies | 9 | 13 |
| Mechanical Elongation Coefficient | 1.2-1.28 | 1.2-1.28 |
| Fixed Capstan Diameter | Φ450mm | |
| Number of Cone Pulley Stages | 4N | |
| Transmission Mode | By precision ground gears | |
| Main Motor Power | AC110KW | AC132KW |
| Speed Regulation Mode | Frequency inverter control | |
| Take-up Spooler Motor Power | AC15KW 6P | |
| Wire Drawing Lubrication Mode | spray type | |
| 伸线油量Lubricant Oil Flow Rate | 500L/Min | 800L/Min |
| Bearing Lubrication Mode | Pumpenforce oil | |
| (L*W*H)Overall Dimensions (L×W×H) | 5400(L)*1450(W)*1020(H) | 8700(L)*1200(W)*1200(H) | |
| Machine weight(kg) | 6000KG | 6000KG | |
Related products

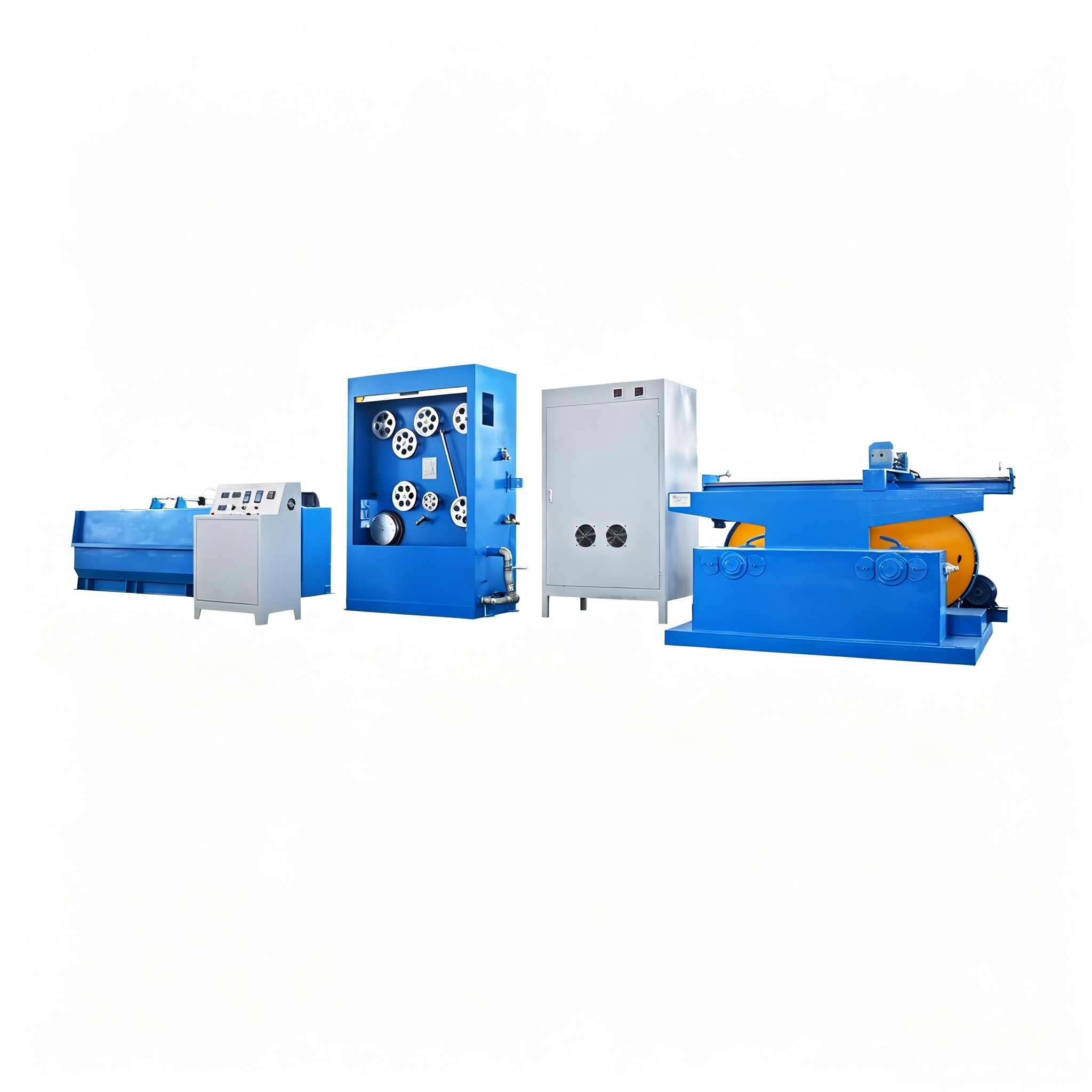

16-wire Small Wire Drawing Machine with Continuous Annealer
