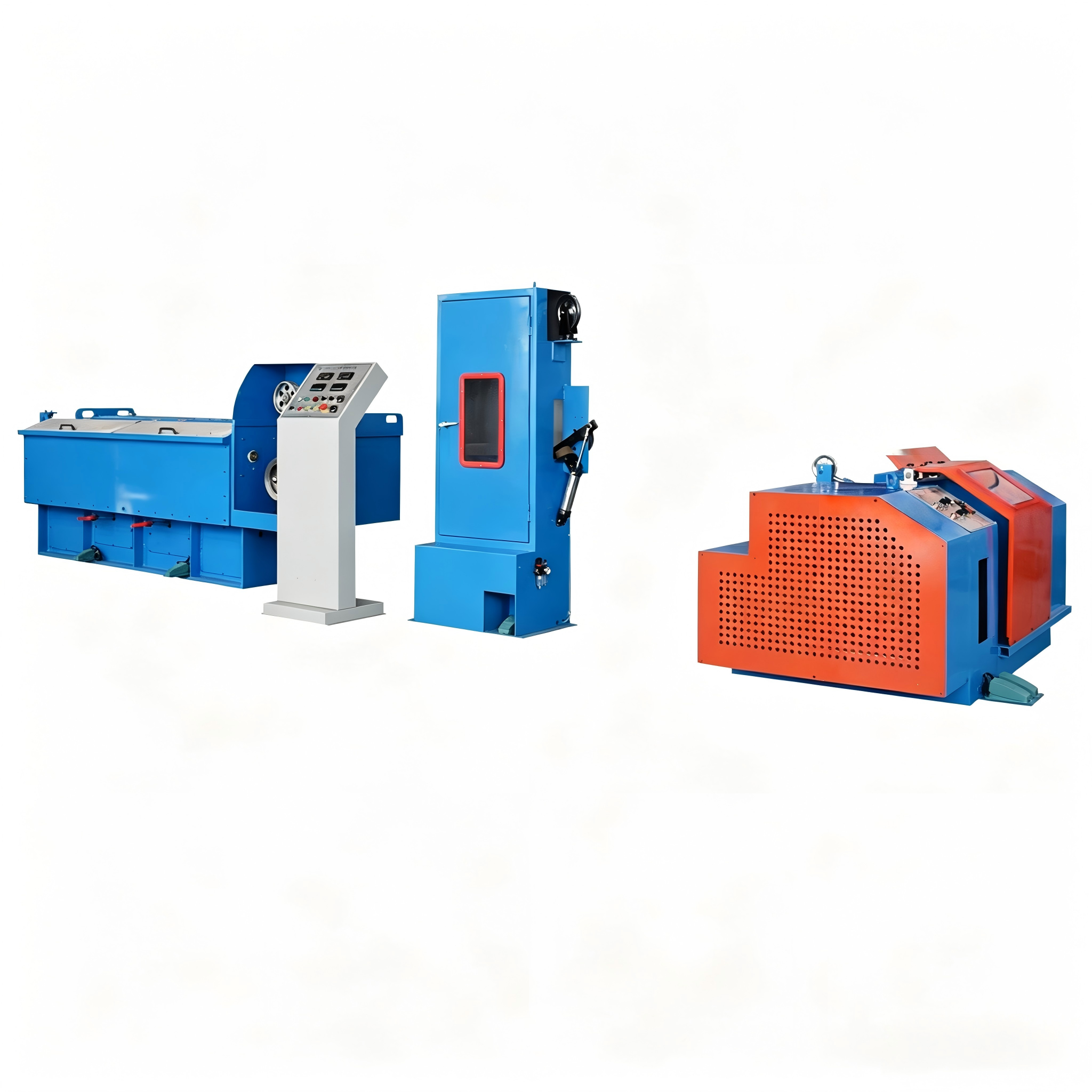

JK-9/13/17D Bare Copper Wire Intermediate Drawing Machine
Description
| Machine Model | JK-9D | JK-13D | JK-17MDS | JK-17DS | JK-17D | JK-17MD |
| Electric Control Mode | Button-type Analog Motor Control
| |||||
| Power Drive Control | Dual Frequency Inverter Control
| |||||
| Finished Wire Diameter | Φ1.2–Φ2.6mm | Φ0.8–Φ2.8mm | Φ0.4–Φ1.2mm | Φ0.4–Φ1.6mm | Φ0.4–Φ1.2mm | Φ0.4–Φ1.2mm |
| Inlet Wire Diameter | Φ2.6–Φ3.5mm | Φ2.5–Φ3.2mm | Φ2.5–Φ3.2mm | Φ2.5–Φ3.2mm | Φ2.6–Φ3.2mm | Φ2.5–Φ3.2mm |
| Maximum Drawing Speed | Max 1200m/min | Max 1500m/min | Max 1200m/min | Max 2000m/min | Max 1800m/min | Max 1200m/min |
| Max. Number of Drawing Dies | 9 | 13 | 17 | 17 | 17 | 17 |
| Mechanical Area Reduction Rate | 19.6%+12.5% | 19.5%+12.5% | 15%+11% | 20%+15% | 18%+12.5% | 15%+11% |
| Machine Frame Structure | Welded Steel Plate with Stress Relief Annealing | Integral Cast Iron Frame | Welded Steel Plate with Stress Relief Annealing | Integral Cast Iron Frame | Integral Cast Iron Frame | Integral Cast Iron Frame |
| Drawing Capstan | Ceramic / Tungsten Carbide Coated Drawing Capstan
| |||||
| Max. Cone Capstan Diameter | Φ280mm | Φ250mm | Φ257mm | Φ250mm | Φ260mm | Φ257mm |
| Fixed Capstan Diameter | Φ280mm | Φ250mm | Φ254mm | Φ250mm | Φ260mm | Φ254mm |
| Take-up Bobbin Size | Max Φ400mm ~ Φ630mm
| |||||
| Bobbin Loading Mode | Double-end Thimble Bobbin Loading
| |||||
| Wire Traversing System | 90W Belt-type Gear Reducer Motor
| |||||
| Main Motor Power | 45KW | 45KW | 37KW | 45KW | 37KW | 37KW |
| Take-up Spooler Motor Power | 11KW
| |||||
| Transmission Mode | Gear Drive | Gear Drive | Gear Drive | Gear Drive | Chain Drive | Chain Drive |
| Synchronous Correction System | PID Position Detection Synchronous Spooler Control
| |||||
| Position Detection Device | Cylinder Swing Arm Balance Mechanism
| |||||
| Tension Adjustment Mode | Pneumatic Pressure Adjustment
| |||||
| Max Copper Loading Capacity | 500KG/Max | |||||
| Braking Mode | Magnetic Brake / Hydraulic Disc Brake
| |||||
| Bearing Lubrication Mode | Forced Oil Lubrication by Oil Pump | Forced Oil Lubrication by Oil Pump | Forced Oil Lubrication by Oil Pump | Forced Oil Lubrication by Oil Pump
| Oil Splash Lubrication | Oil Splash Lubrication |
| Wire Drawing Lubrication Mode | Semi-immersion + Spray Lubrication | Semi-immersion + Spray Lubrication | Semi-immersion + Spray Lubrication | Semi-immersion + Spray Lubrication | Spray Lubrication | Spray Lubrication |
| Rated Power Supply | 380V 50/60HZ or Custom | |||||
| Lubricant Oil Flow Rate | 120 L/min | 120 L/min | 120 L/min | 120 L/min | 100 L/min | 100 L/min |
| Overall Dimensions (L×W×H) | 2440(L)*715(W)*1090(H)mm | 2440(L)*715(W)*1200(H)mm | 3500(L)*1200(W)*1250(H)mm | 2100(L)*1022(W)*995(H)mm | 5000(L)*2500(W)*2000(H)mm | 5000(L)*2500(W)*2000(H)mm |
| Machine Weight (kg) | 4200KG | 4300KG | 4500KG | 5100KG | 3000KG | 3000KG |
