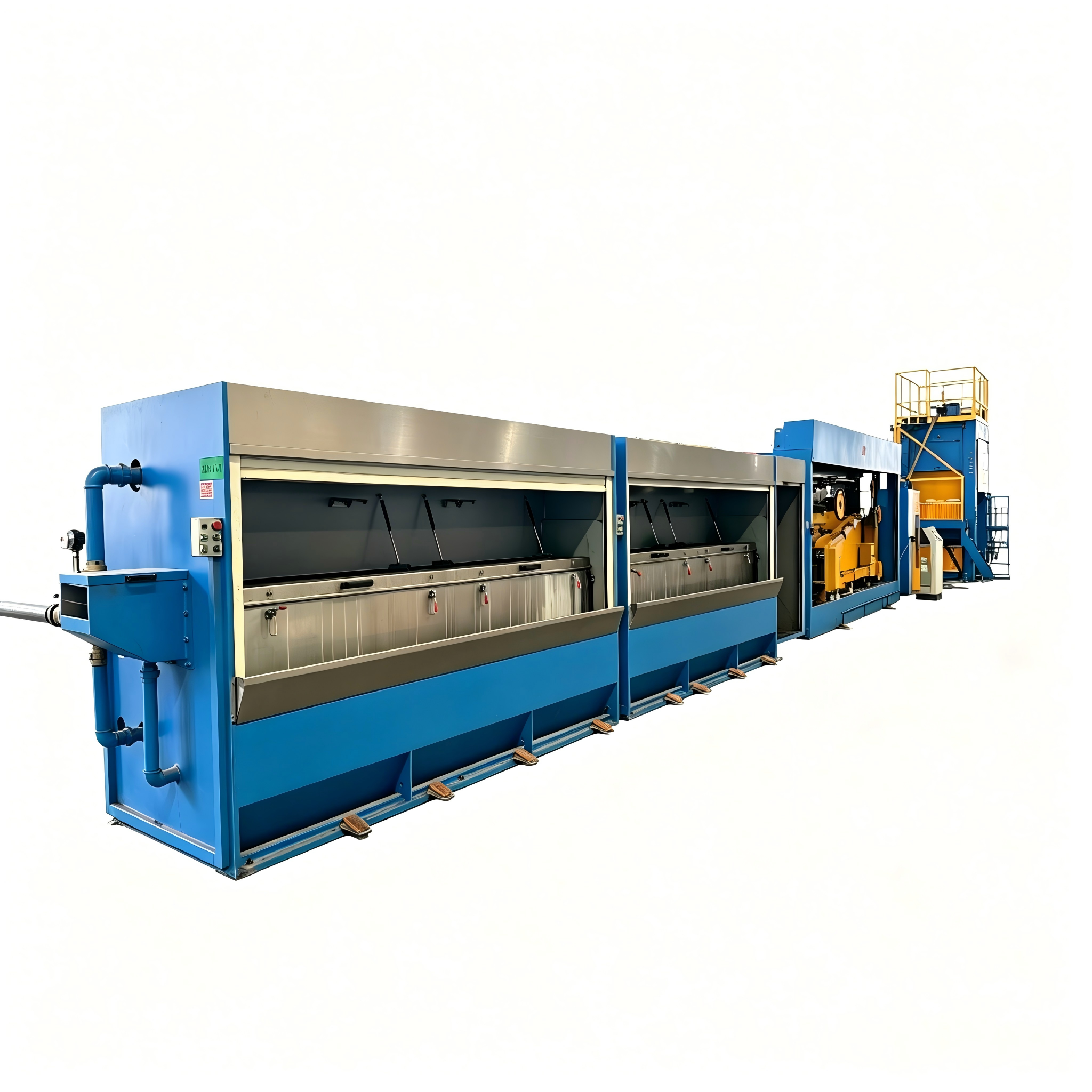

9-Dies Split-motor Rod Breakdown Machine with Continuous Annealing, equipped with Basket Coiler / Dual-spool Take-up
Description
| Machine Model | JK-9D | JK-13D |
| Finished Wire Diameter | Φ3.2-Φ2.4mm/MAX Copper Wire
| Φ3.5-Φ1.2mm/MAX Copper Wire
|
| Inlet Wire Diameter | Φ8.0mm/MAX Copper Wire
| Φ8.0mm/MAX Copper Wire
|
| Maximum Drawing Speed | 15m/s | 25m/s |
| Max. Number of Drawing Dies | 9 | 13 |
| Mechanical Elongation Coefficient | 1.31-1.20 | 1.41-1.22 |
| Fixed Capstan Diameter | Φ450mm | Φ450mm |
| Transmission Mode | Precision Ground Gear Drive | |
| Main Motor Power | AC160KW | DC280KW |
| Traction Motor Power | None | DC75KW
|
| Wire Drawing Lubrication Mode | Full Dip Lubrication | |
| Lubricant Oil Flow Rate
| 500 L/min (Liters Per Minute) | 1000 L/min (Liters Per Minute) |
| Bearing Lubrication Mode | Forced Oil Lubrication via Oil Pump | |
| Overall Dimensions (L×W×H) | 5400(L)*1450(W)*1020(H)mm | 8700(L)*1200(W)*1200(H)mm |
| Machine Weight | 8000KG | 12000KG |
Related products
400-9/13D In-line Medium-Speed Large Wire Drawing Machine
This machine is a sliding type wire drawing machine adopting single-row straight drawing structure with equal-diameter capstans.▶ It adopts multi-stage gear transmission. The gears are precision ground cylindrical helical gears, and the bearing assembly consists of a pair of tapered roller bearings matched with a pair of ball bearings.▶ It applies oil-immersed cooling and lubrication for wire drawing. All drawing capstans are of insert assembly structure, and the rim surface is sprayed with tungsten carbide coating.▶ The take-up machine is equipped with looping off-line device, supporting dual-spool continuous spider-type take-up.▶ Both the main motor and take-up motor adopt frequency conversion speed regulation.
450-9/13D High-speed Bare Wire Large Drawing Machine
- Equipped with an independent motor for easy extension control and simple operation.
- Independent roller transmission prevents sliding wire drawing and generates less dust.
- High-speed precision gears deliver a longer service life and lower noise levels.
- Horizontal structure facilitates easier operation.
- Temperature control system guarantees production safety.
- Siemens drives and touchscreens simplify parameter configuration.
- Eco-friendly paint maintains the machine's color, luster and surface smoothness.
JK-4/8/16/24 Multi-wire Drawing Machine
High-precision helical gear transmission, unique oil lubrication mechanism, dual-motor drive and rapid die change system;The drawing oil lubrication adopts a powerful internal oil injection design inside the die holder, which delivers more sufficient lubrication, saves installation space and facilitates operation;Both the annealing contact copper rings and nickel sleeves are made of special alloy materials to extend service life;The on-line annealing control adopts zero-meter preset voltage design to ensure stable annealing quality of wire during machine startup and shutdown.
