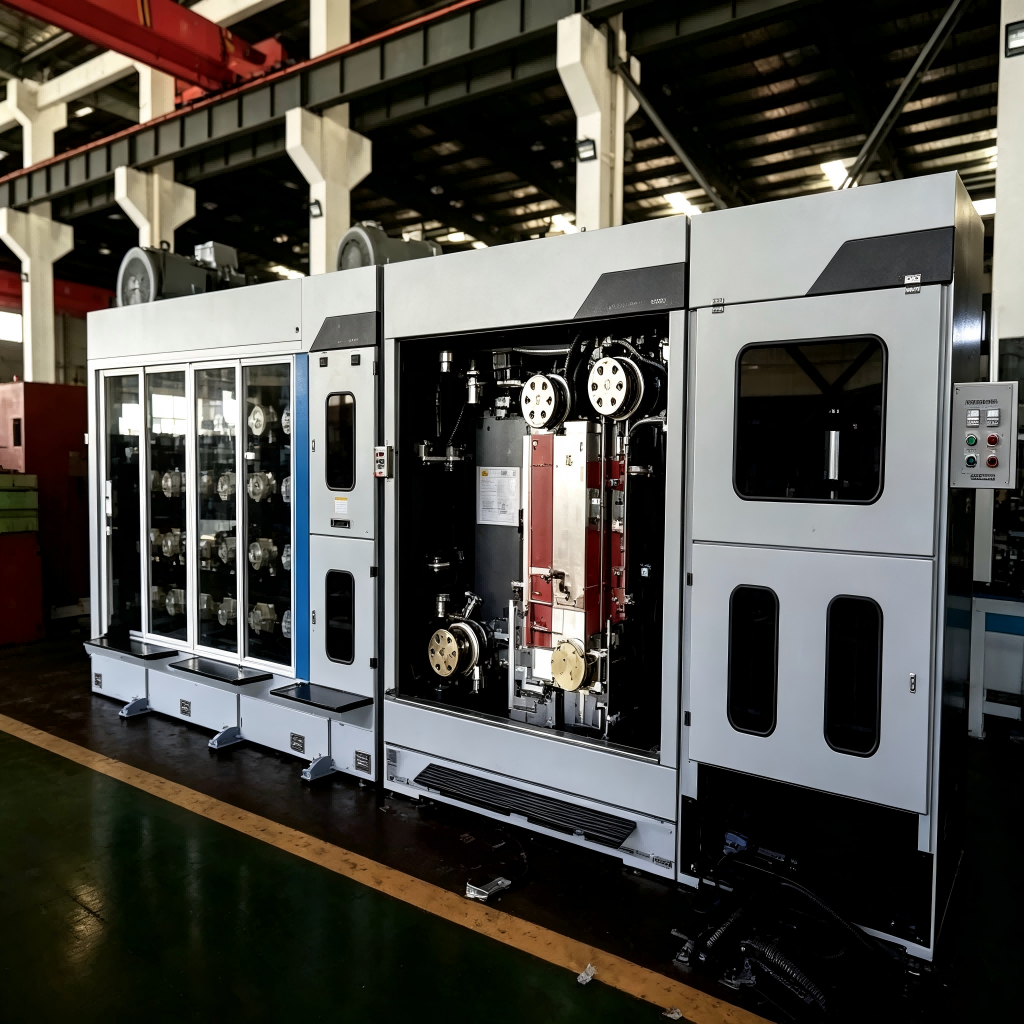

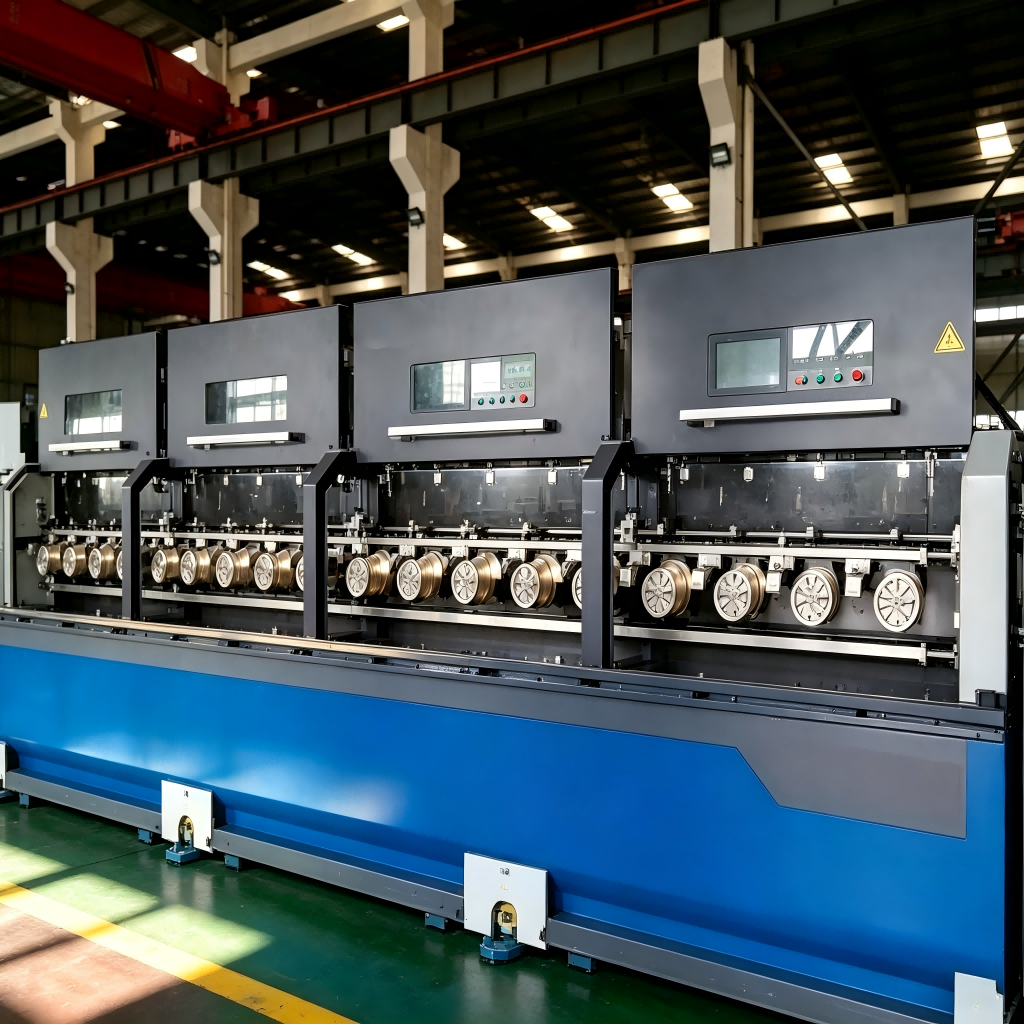

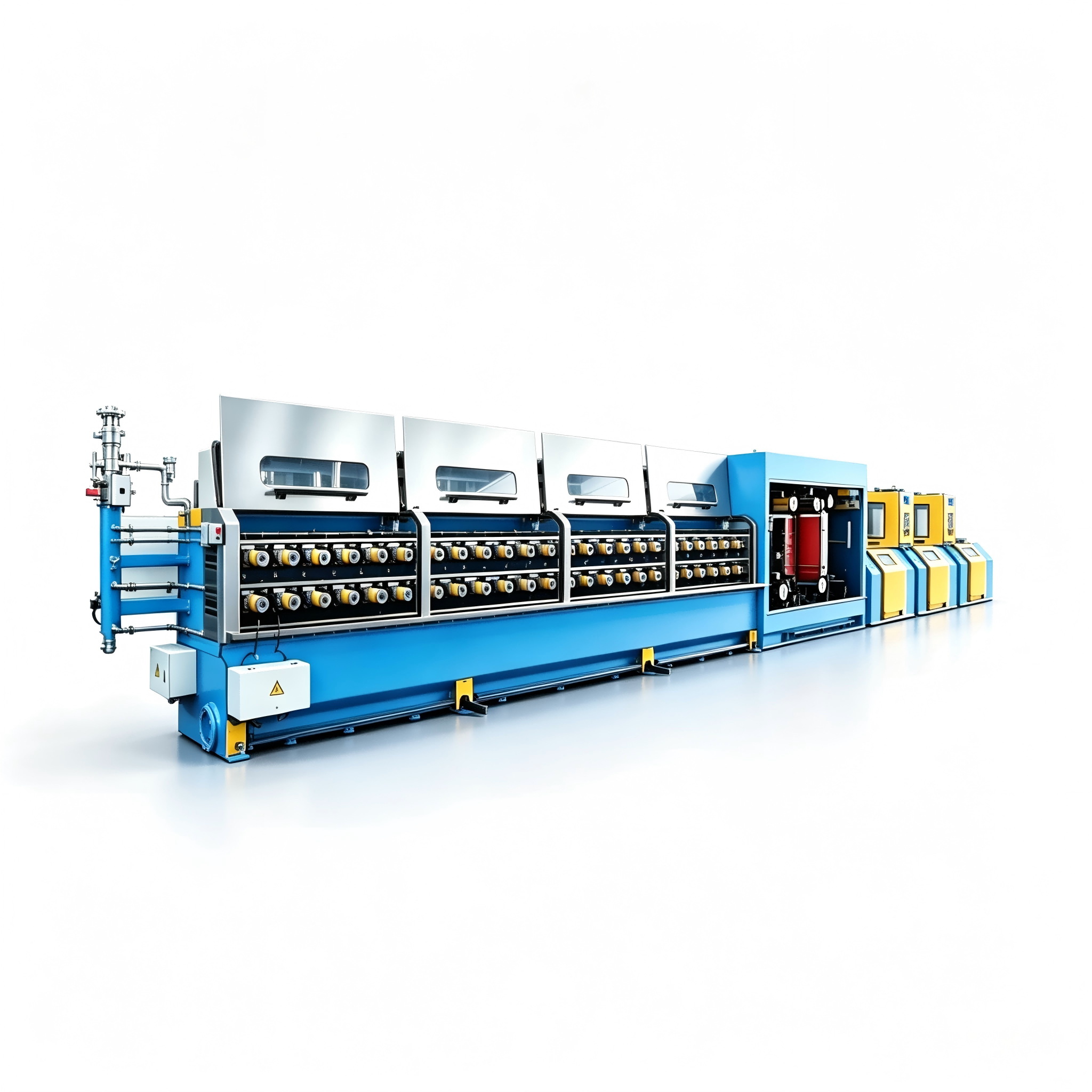

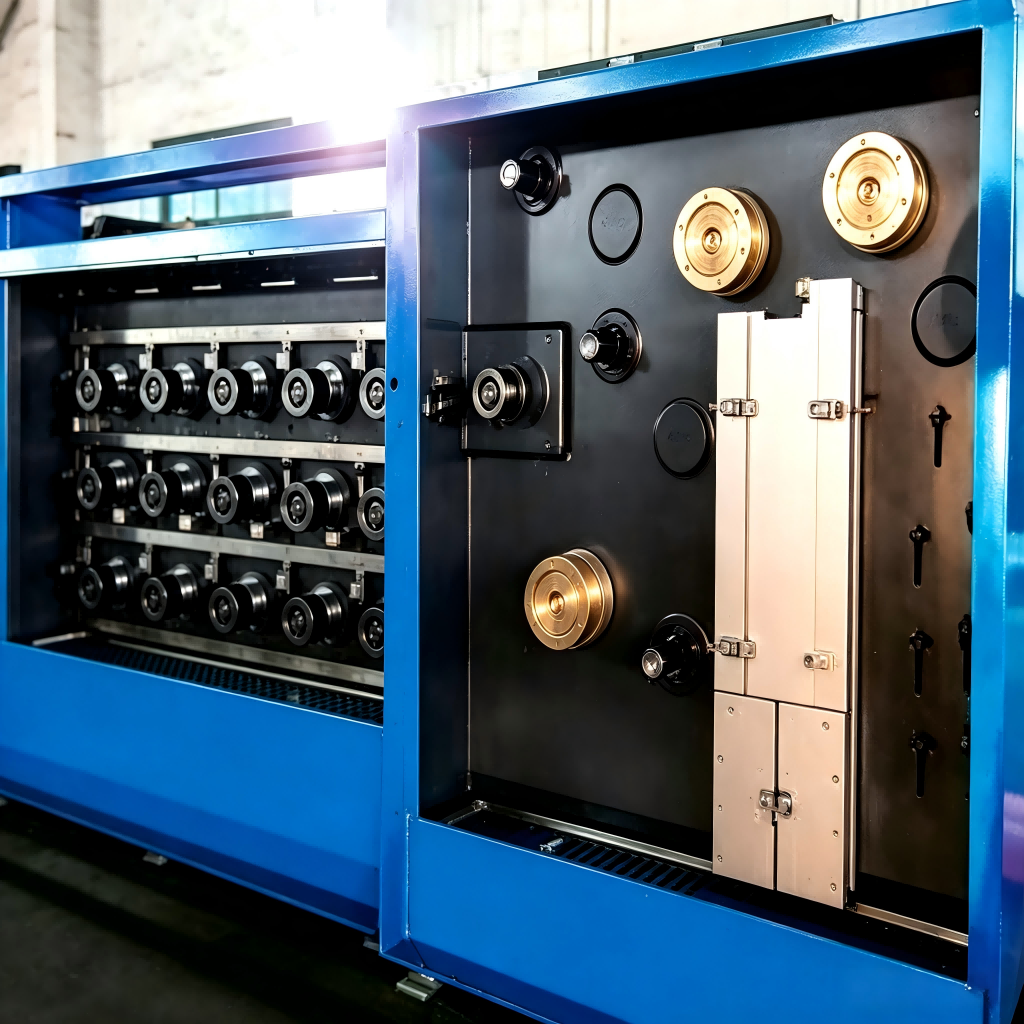

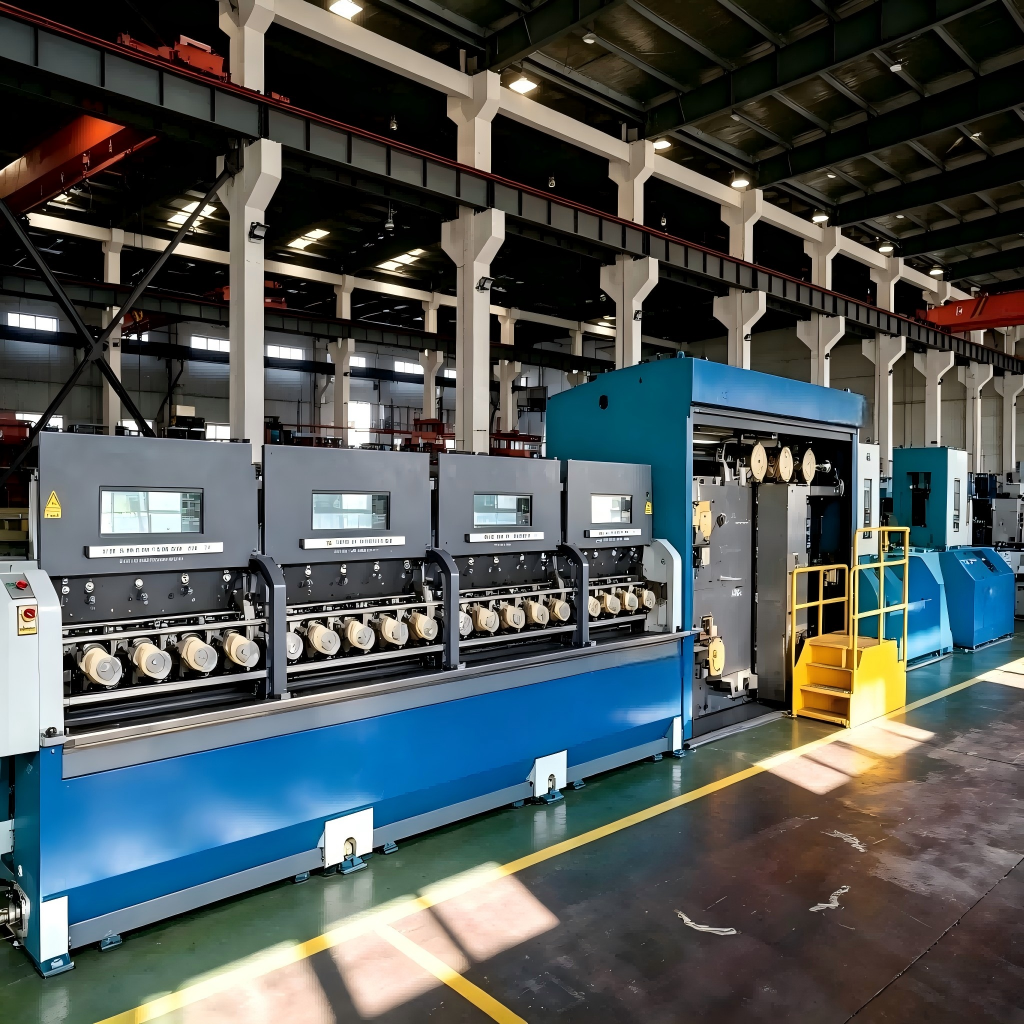

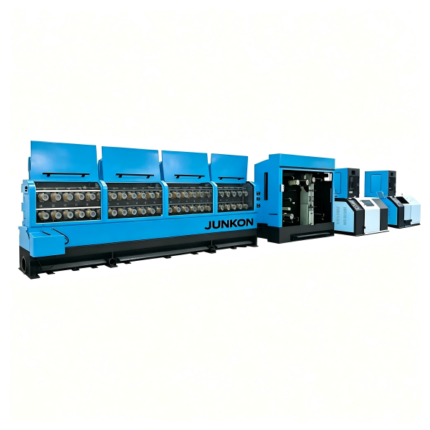

JK-4/8/16/24 Multi-wire Drawing Machine

High-precision helical gear transmission, unique oil lubrication mechanism, dual-motor drive and rapid die change system;

The drawing oil lubrication adopts a powerful internal oil injection design inside the die holder, which delivers more sufficient lubrication, saves installation space and facilitates operation;

Both the annealing contact copper rings and nickel sleeves are made of special alloy materials to extend service life;

The on-line annealing control adopts zero-meter preset voltage design to ensure stable annealing quality of wire during machine startup and shutdown.

Machine Model	JK-100MD4T-25	JK-100MD8T-22	JK-100MD16T-22	JK-100MD24T-27
Applicable Materials	Bare copper wire, tinned copper wire	Bare copper wire, tinned copper wire	Bare copper wire, tinned copper wire	Bare copper wire, tinned copper wire
Production Head Count	4	8	16	24
Inlet Wire Diameter	1.60–2.00 mm	1.60–2.00 mm	1.60–2.00 mm	2.6 mm
Finished Wire Diameter	0.15–0.60 mm	0.15–0.40 mm	0.15–0.40 mm	0.15–0.40 mm
Number of Drawing Dies	25	22	22	27
Drawing Capstan Diameter	150 mm	100 mm	100 mm	100 mm
Maximum Drawing Speed	Max. 1800 m/min	Max. 1800 m/min	Max. 1800 m/min	Max. 1800 m/min
Finished Wire Diameter Range	0.15–0.6 mm	0.15–0.40 mm	0.15–0.40 mm	0.15–0.40 mm
Annealing Contact Wheel Diameter	140 mm	140 mm	140 / 200 mm	200 mm
Annealing Voltage	60 V
Max. Annealing Current	Max. 1000 A	Max. 2000 A	Max. 2500 A Max. 3000 A	Max. 5000 A
Annealing Power	85 KW	120 KW	170 KW / 230 KW	360 KW
Annealing Principle	Resistive DC Annealing
