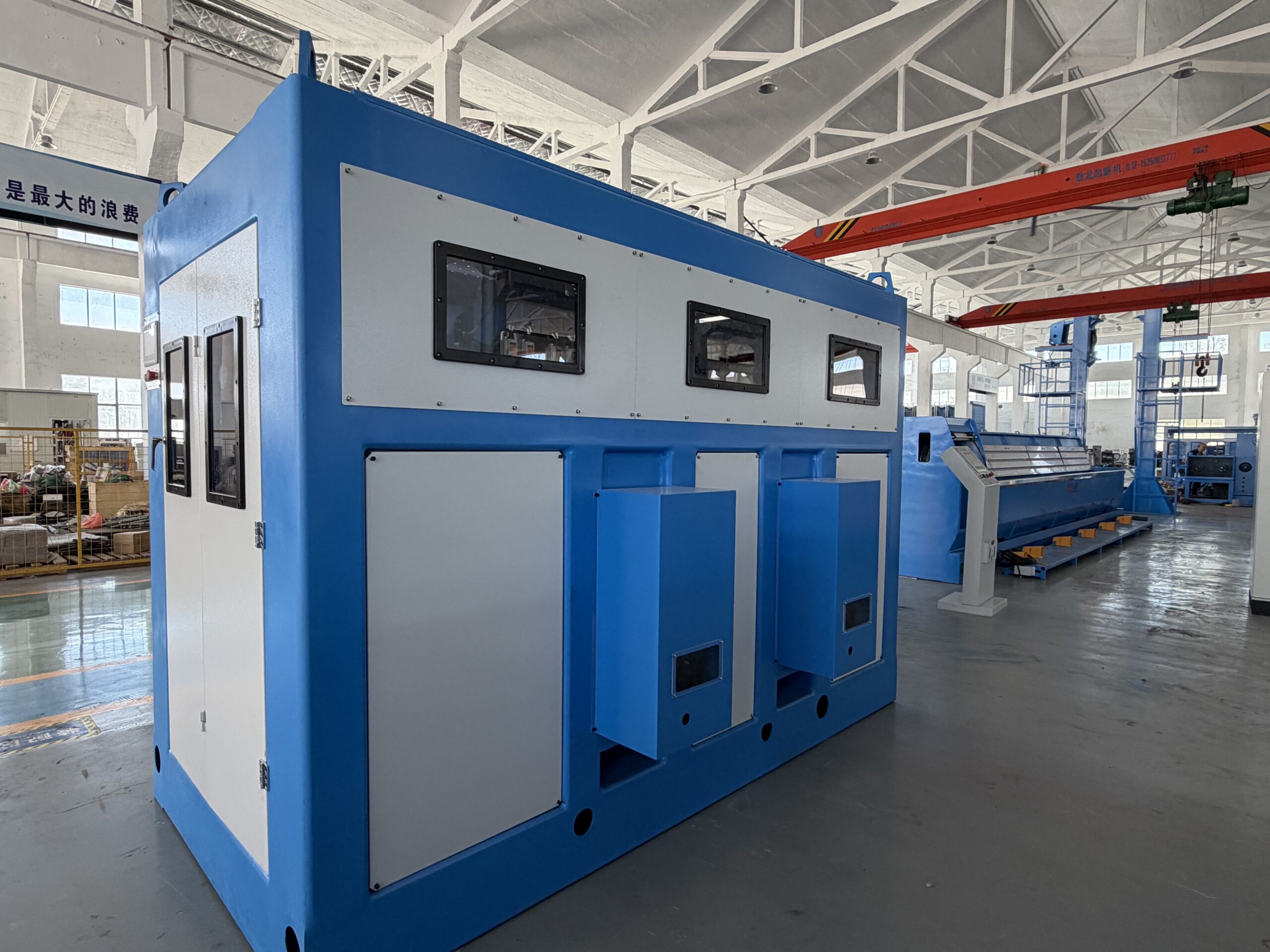

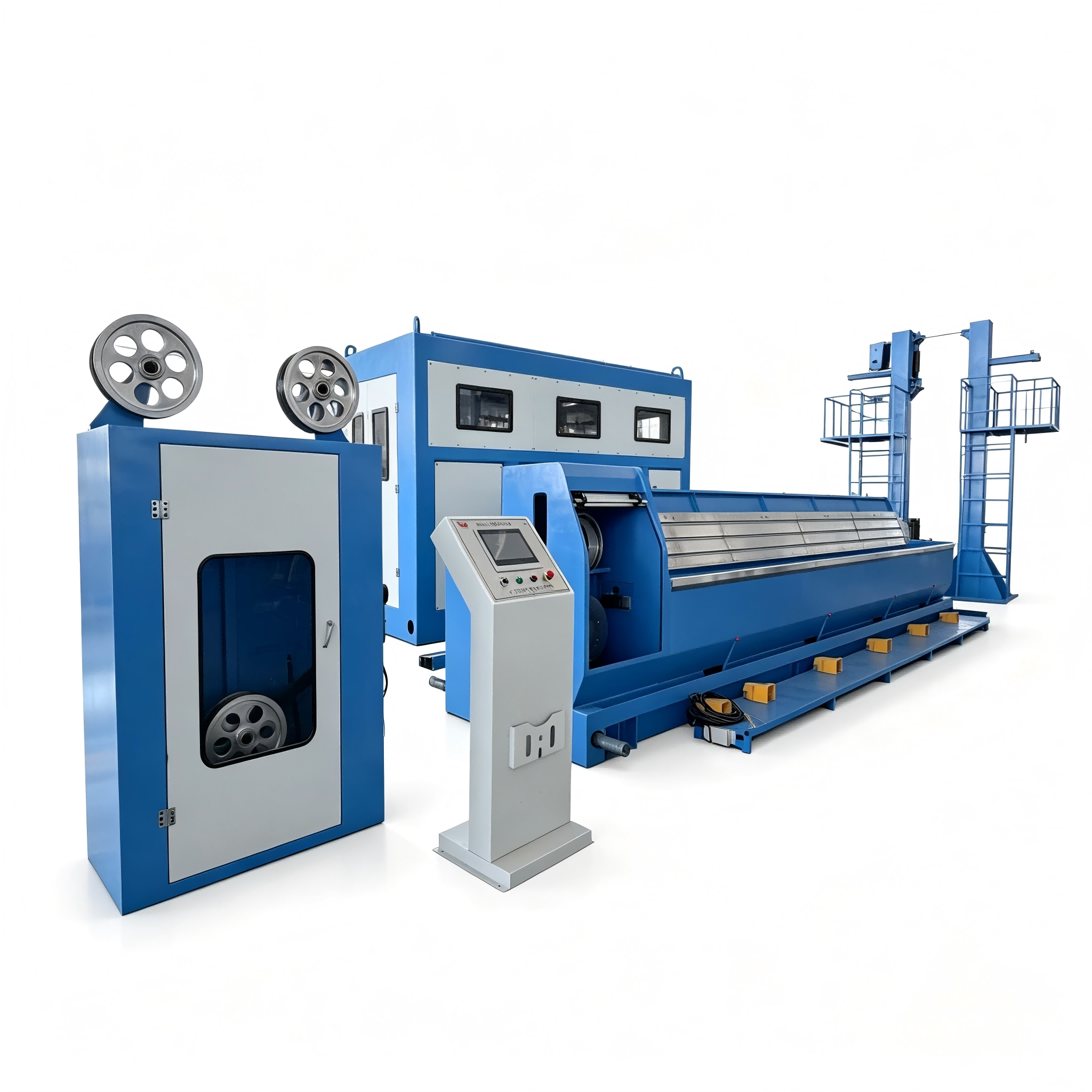

JK-450-13D High-speed Aluminum Rod Breakdown Machine, Dual-spool Take-up

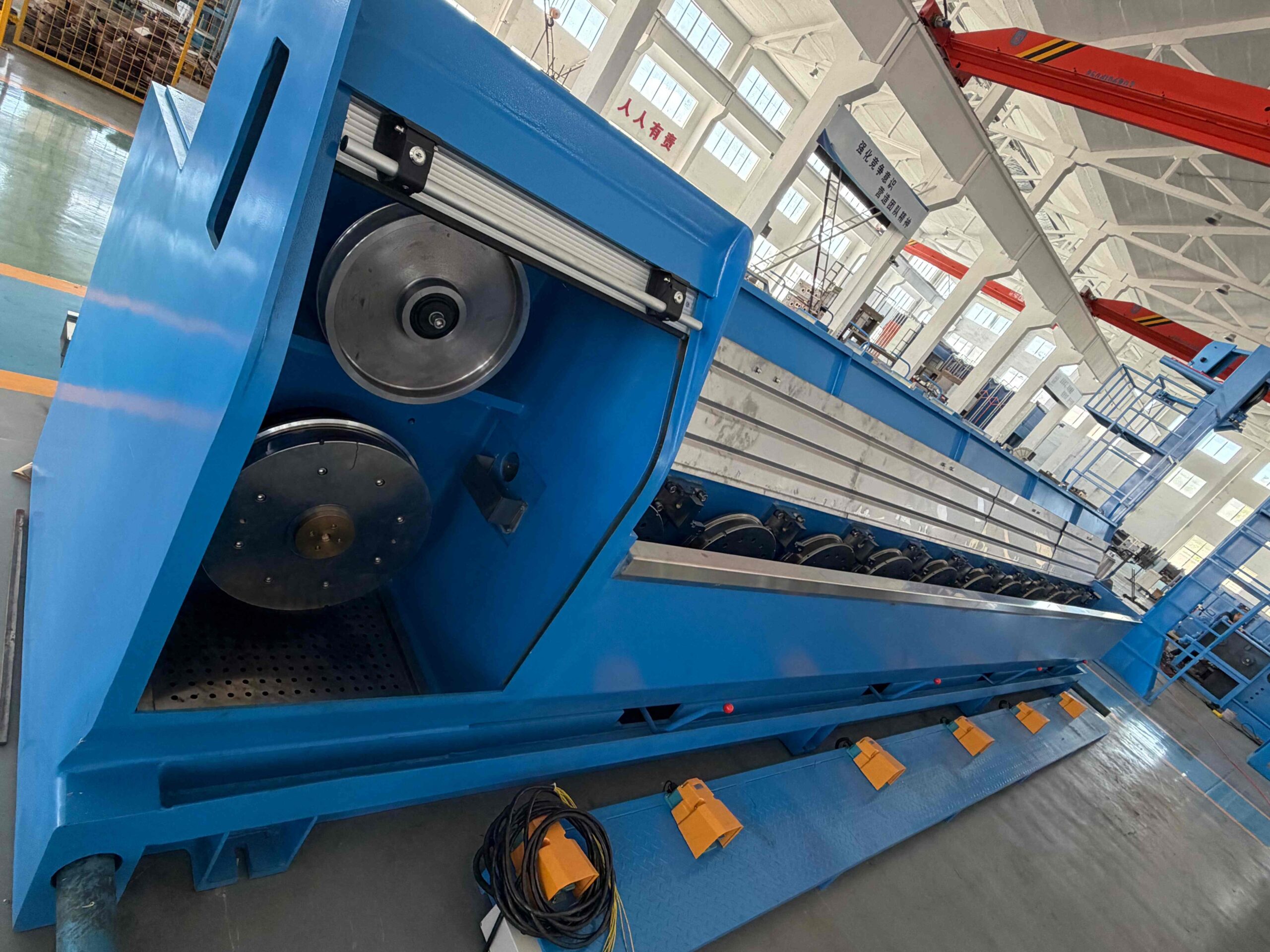

Featuring inline-sliding continuous wire drawing, the machine’s capstans run submerged in drawing oil for aluminum wire production, supported by a dedicated lube-oil cooling & circulation system.

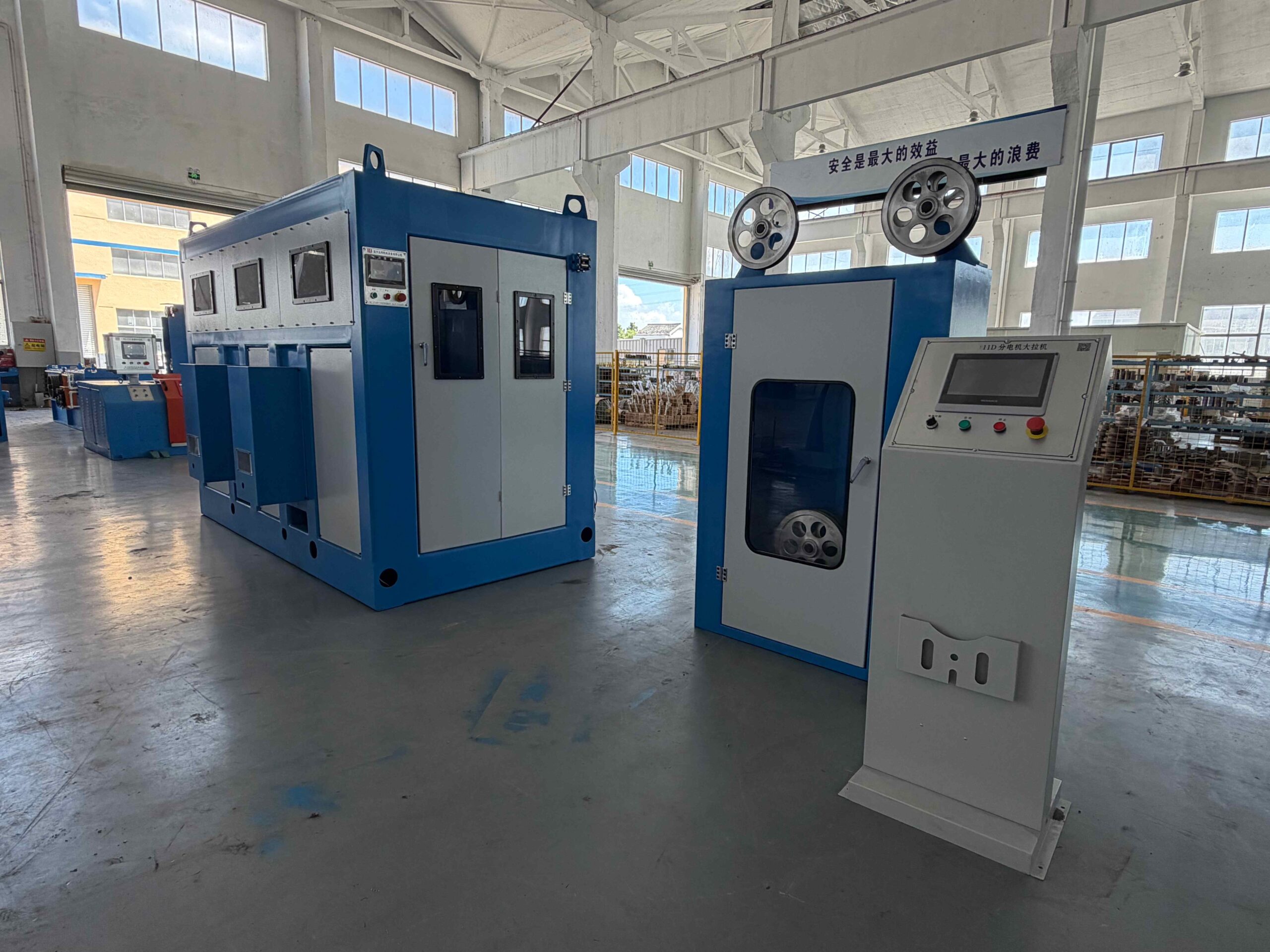

Fully mechatronic with PLC and full-process touch-screen control, it achieves well-balanced mechanical-electrical speed, supporting quick die change and fully-pneumatic non-stop automatic spool switching for take-up.
Description
| No. | Item | Specification | No. | Item | Specification |
| 1 | Incoming Wire Diameter | Φ9.5 mm | 10 | Overall Machine Noise | ≤85 dB |
| 2 | Outlet Wire Diameter | Φ1.7-Φ4.5 mm | 11 | Main Motor (AC) | 200 kW, 970 r/min |
| 3 | Max. Outlet Speed | 25 m/s (high-speed spool)Normal operating speed: 18-22 m/s | 12 | Capstan Traction Motor (AC) | 55 kW, 970r/min |
| 4 | Drawing Capstan Speed Ratio | 1.238-1.151-12 dies: 1.23812-13 dies: 1.05-1.26 | 13 | Take-up Motor (AC) (2 sets) | 18.5 kW,1470 r/min |
| 5 | Max. Number of Drawing Passes | 13 | 14 | Total Installed Power
| 300 kW |
| 6 | Capstan Diameter | Φ450 mm | 15 | Total Compressed Air Consumption
| 6 m³/h,0.5 MPa |
| 7 | Spool-changing Speed | 6-12 m/s. Length metering,auto-spool-change at preset length | 16 | Drawing-oil Cooling Tank Volume | 5.5 m³ |
| 8 | Take-up Spool Size | Compatible with PND630 /710 | 17 | Overall Machine Dimension | 19.8 ×3.5×4.5 m |
| 9 | Max. Traverse Width | 560 mm | 18 | Total Machine Weight | 40 t |
Related products

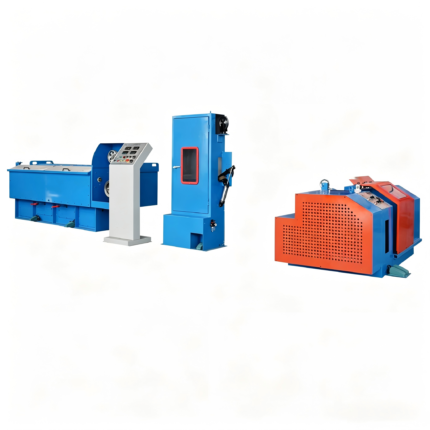

400-9/13D In-line Medium-Speed Large Wire Drawing Machine
