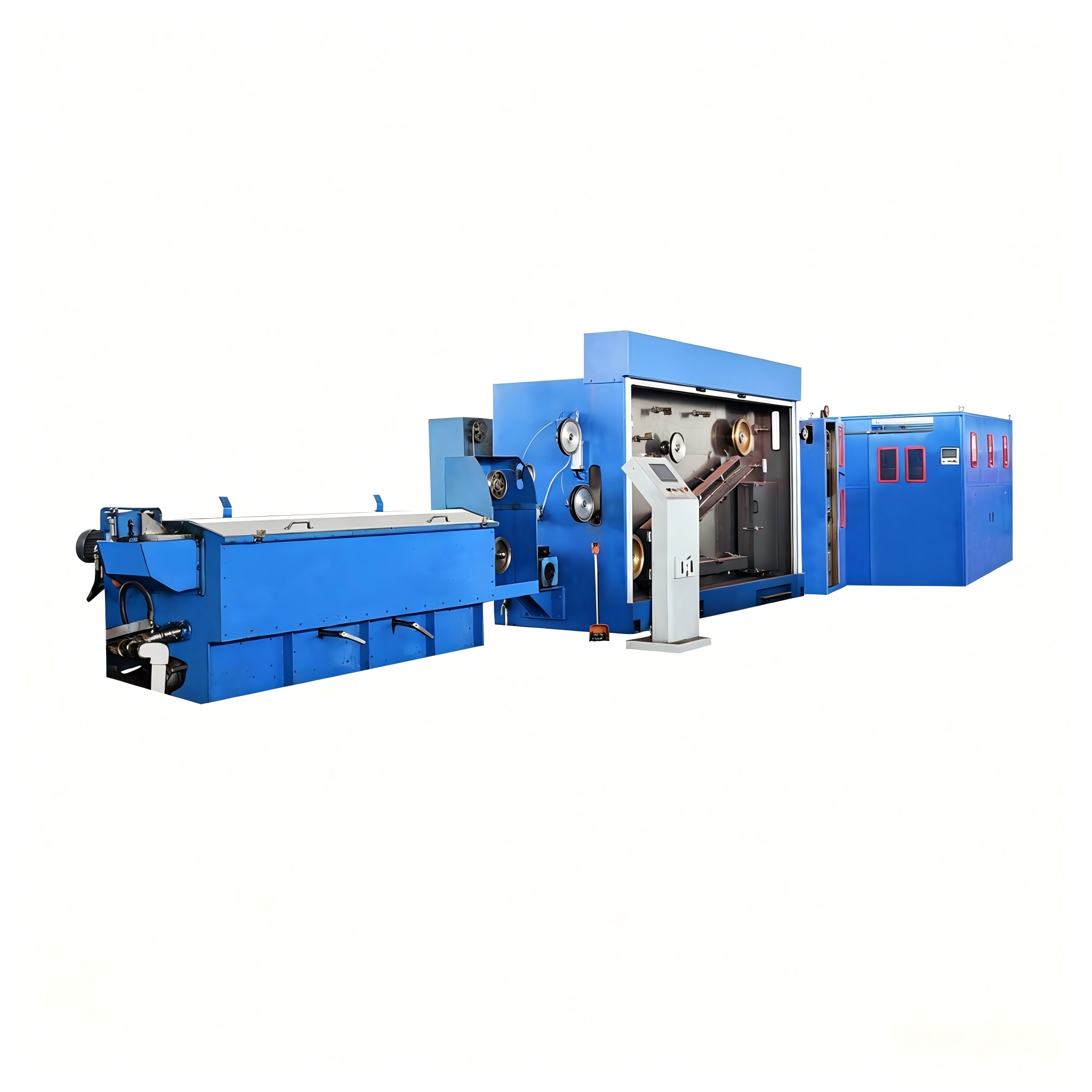

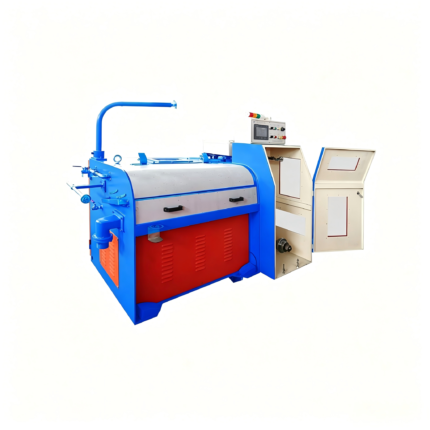

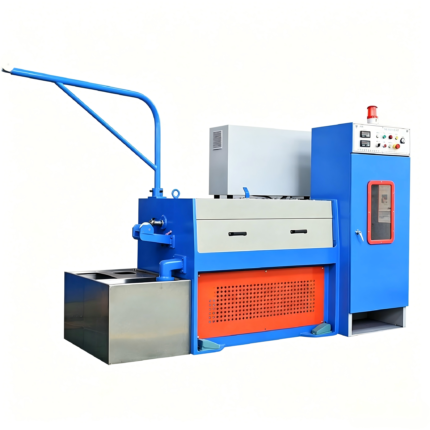

JK-9/13/17D High Speed Intermediate Copper Wire Drawing Machine with Continuous Annealer
Description
| Machine Model | JK-9D | JK-13D | JK-17D |
| Annealing Mode | DC Four-stage Annealing | ||
| Power Control System | Dual Frequency Inverter Control | ||
| Finished Wire Diameter | Φ1.0-Φ2.8mm | Φ0.8-Φ2.8mm | Φ0.4-Φ1.6mm |
| Inlet Wire Diameter | Φ2.6-Φ3.5mm | Φ2.5-Φ3.5mm | Φ2.5-Φ3.0mm |
| Maximum Drawing Speed | 1500mpm/max | 1500mpm/max | 1800mpm/max |
| Max. Number of Drawing Dies | 9 | 13 | 17 |
| Mechanical Area Reduction Rate | 19.6%+12.5% | ||
| Main Motor Power | 55KW | 55KW | 45KW |
| Take-up Spooler Motor Power | 11KW | 11KW | 11KW |
| Transmission Mode | Precision Gear Drive | ||
| Tension Adjustment Mode | Pneumatic Pressure Adjustment | ||
| Wire Traversing System | 90W Belt-type Reducer Motor | ||
| Position Detection Device | Cylinder Swing Arm Buffer Balance Mechanism | ||
| Braking Mode | Pneumatic Disc Brake | ||
| Outer Diameter of Dehydration Die | Φ25mm | Φ25mm | Φ25mm |
| Max. Annealing Current | DC3000A/MAX | DC3000A/MAX | DC2000A/MAX |
| Max. Annealing Voltage | DC65V/MAX | DC65V/MAX | DC65V/MAX |
| Nominal Diameter of Annealing Contact Wheel | Φ350mm | Φ350mm | Φ250mm |
| Annealing Section Length | 2600mm | 2600mm | 1500mm |
| Preheating Section Length | 11000mm | 11000mm | 3560mm |
| Annealing Power | 195KVA/MAX | 195KVA/MAX | 120KVA/MAX |
| Steam Generator Power | 18KW | 12KW | |
| Steam Output | 18kg/h | 12kg/h | |
| Annealing Cooling Water Flow Rate | 650L/min | 300L/min | |
| Compressed Air Consumption | 0.4~0.6Mpa,50L/min | ||
| Machine Weight (kg) | 3000KG | 3000KG | 2300KG |
| Matching Base Machine Model | JK-9D、JK-11D、JK-13D | JK-12D | |
