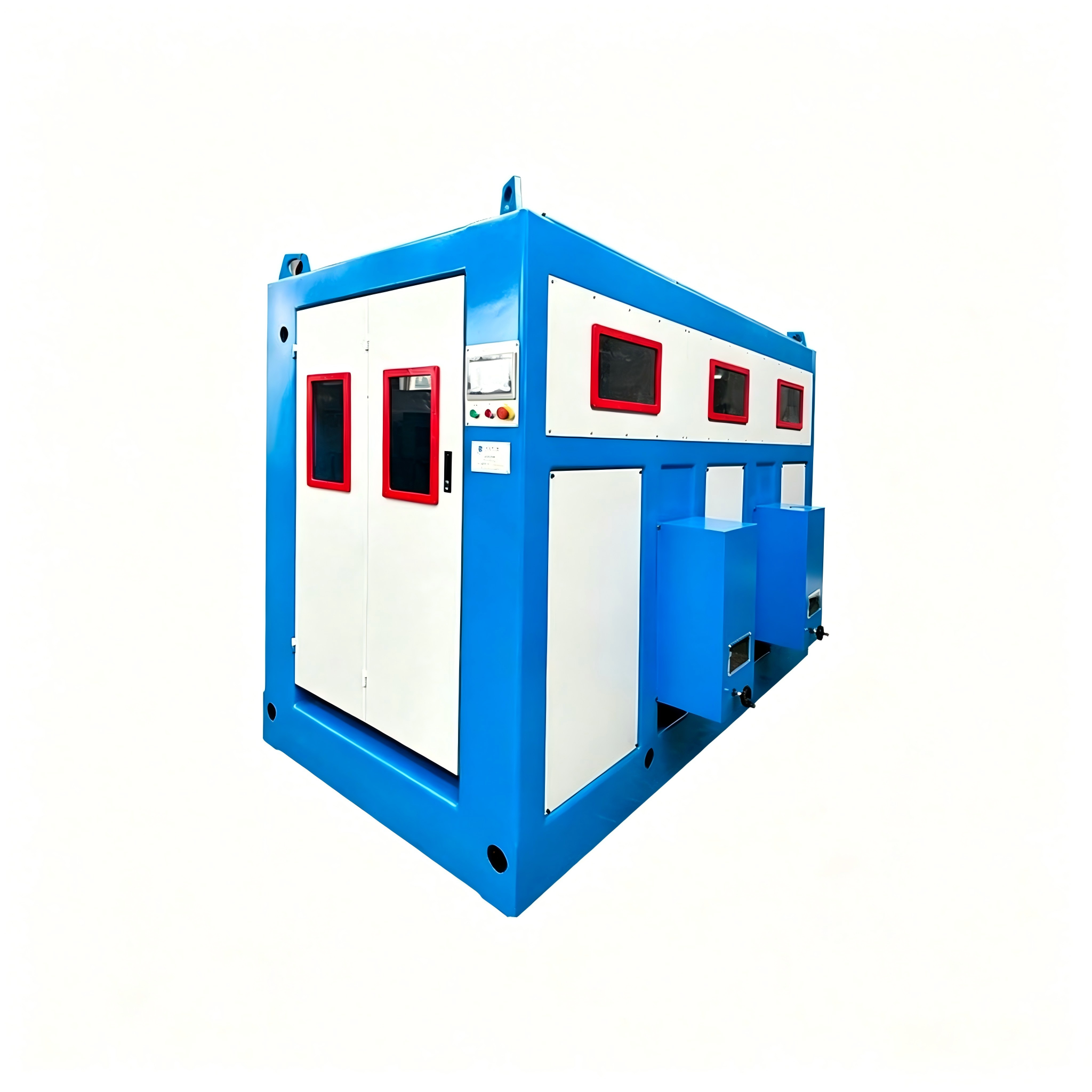

JK-HS500/630 Dual-Bobbin Wire Take-up Machine
Description
| Machine Model | JK-HS630 | JK-HS500 |
| Applicable Wire Diameter | Φ1.2–Φ4.0 mm Max (Copper Wire) | Φ0.8–Φ0.6 mm Max (Copper Wire) |
| Max Line Speed | 25 m/s | 20 m/s |
| Take-up Bobbin Size | Φ630 mm, Φ500 mm | Φ500 mm |
| Max Bobbin Loading Weight | Max 500 KG | Max 500 KG |
| Wire Storage Length | 17 m | 17 m |
| Take-up Motor Power | DC 22 kW × 2 | DC 11 kW × 2 |
| Traverse Motor Power | 1.5 kW | 1.5 kW |
| Sliding Base Motor Power | 0.75 kW | 0.75 kW |
| Braking System | Pneumatic Disc Brake | Pneumatic Disc Brake |
| Compressed Air Consumption | 0.4–0.6 MPa, 50 L/min | 0.4–0.6 MPa, 50 L/min |
| Matching Machine Models | Large-size Continuous Annealer | Large-size & Medium Wire Continuous Annealer |
| Overall Dimensions (L×W×H) | 3350(L)×3000(W)×2200(H) mm | 3350(L)×3000(W)×2200(H) mm |
| Machine Weight | 5300 KG | 5300 KG |
