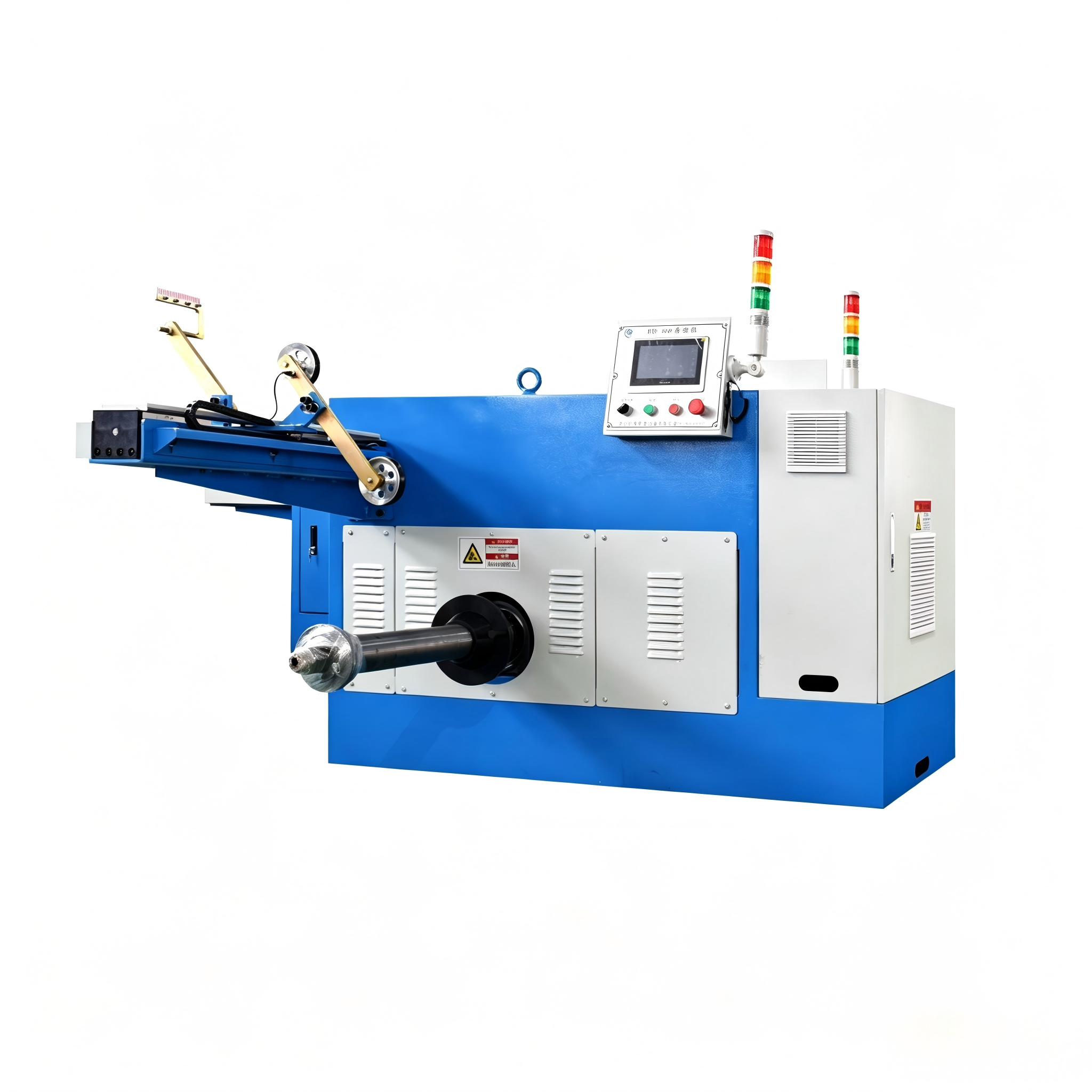

JK-630 Shaftless Parallel Wire Take-up Machine
Description
| Machine Model | JK-630 (Shaftless Type) | JK-630 (Shaft Type) |

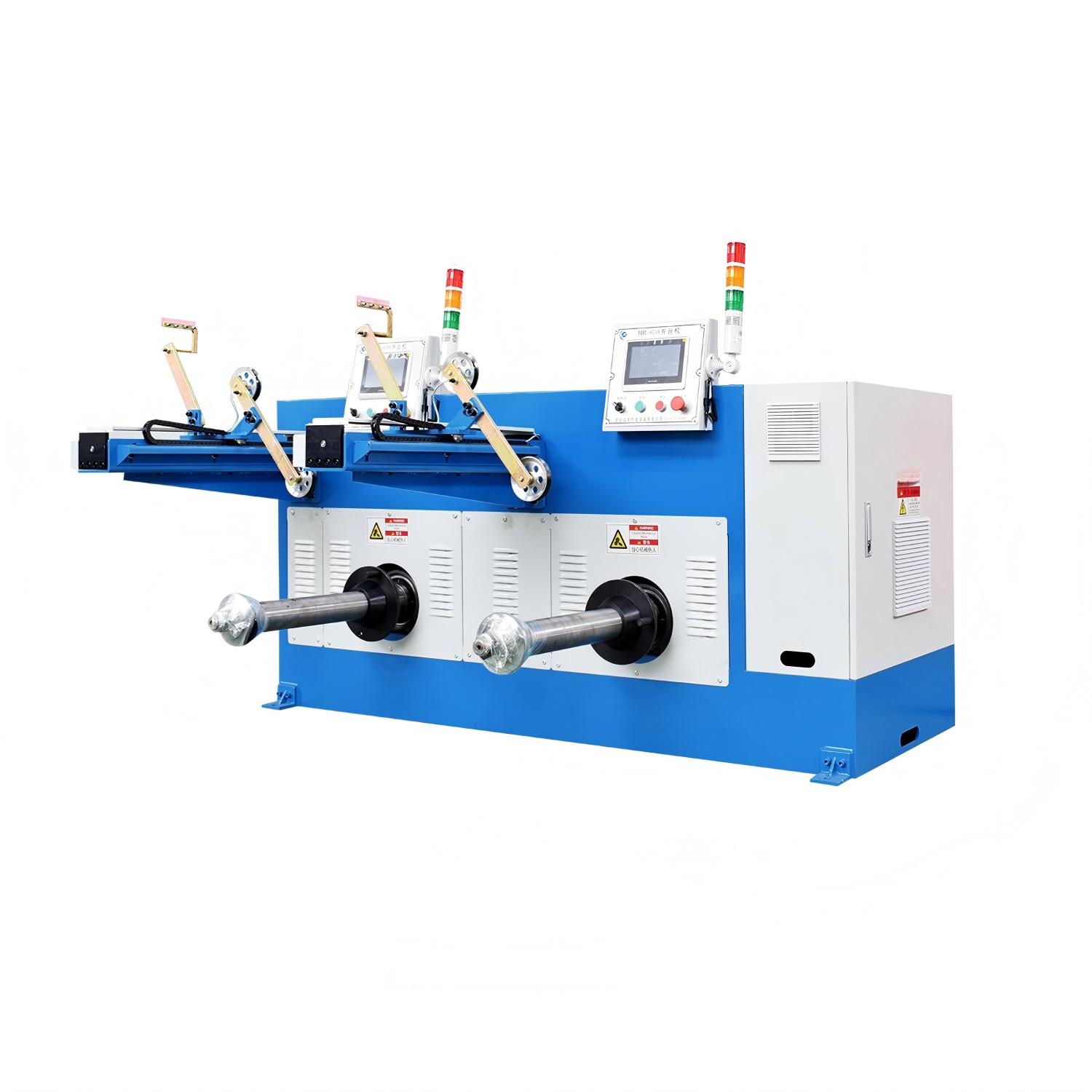

| Number of Production Heads | Single Head | Multi Heads |
| Processing Wire Diameter | Φ0.1–Φ0.6 mm | Φ0.1–Φ0.6 mm |
| Applicable Reel Size | Φ630 | Φ630 |
| Reel Loading Mode | Cylinder Jacking Tightening | Screw Thimble Tightening |
| Main Motor | 1.8KW Servo Motor | 1.8KW Servo Motor |
| Traversing System | Servo Traversing | Servo Traversing |
| Braking System | Pneumatic Brake | Pneumatic Brake |
| Transmission Mode | Direct Drive by Reducer Motor | Direct Drive by Reducer Motor |
| Max Copper Loading Capacity | 500KG | 500KG |
