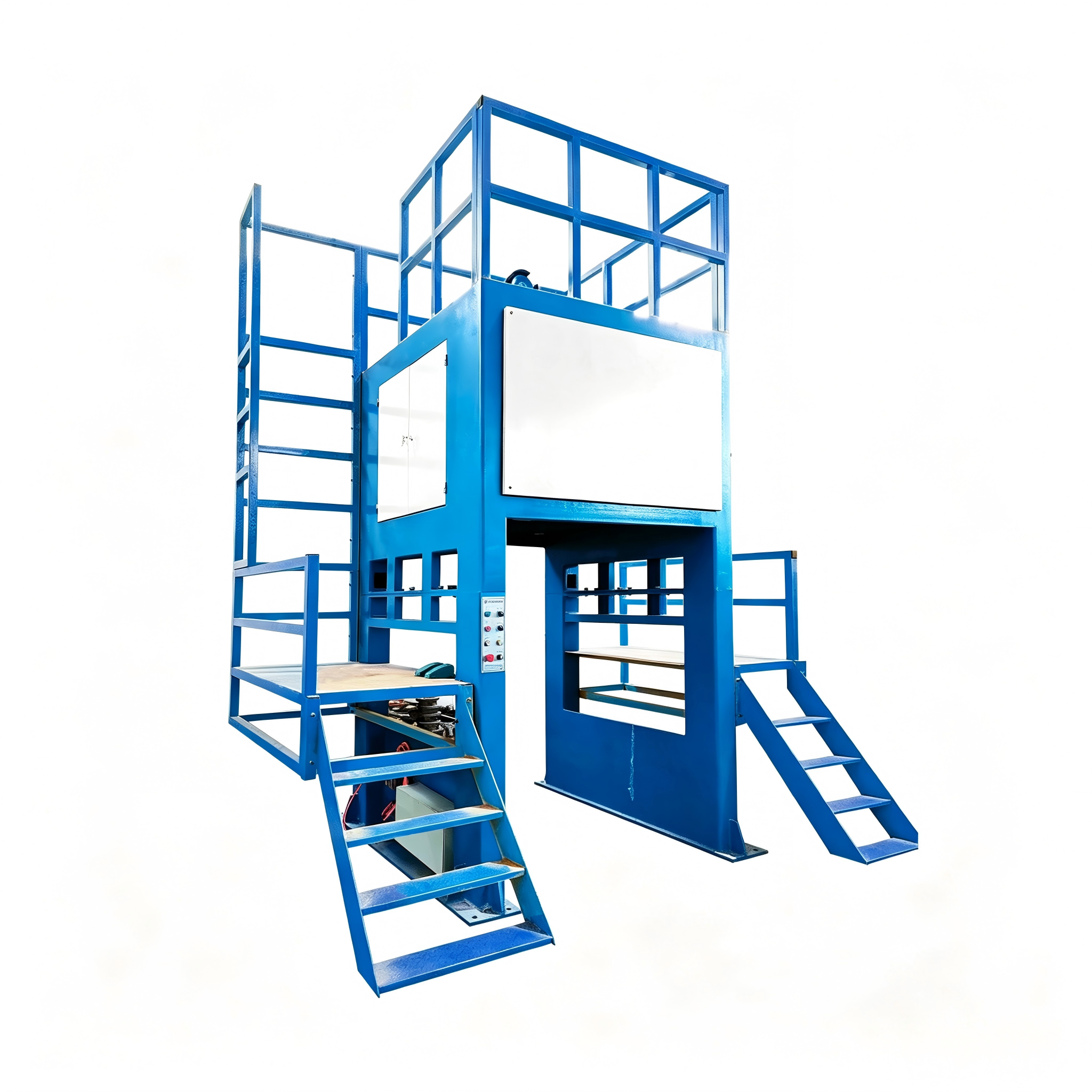

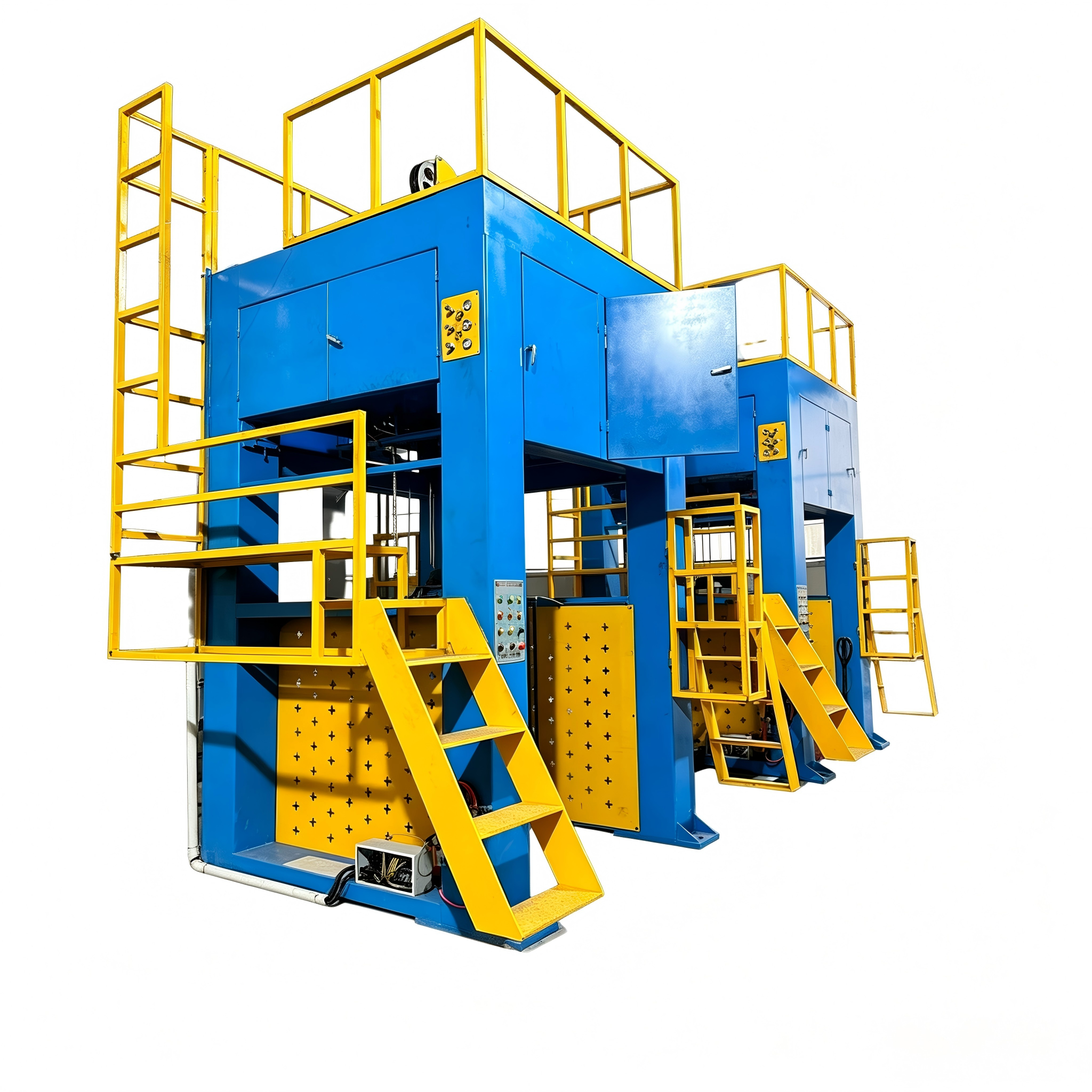

JK-TU650/800 Take-up Machine
Description
| Machine Model | JK-TU650 | JK-TU800 |
| Applicable Wire Diameter | Φ0.8–Φ2.0 mm | Φ1.2–Φ4.0 mm |
| Maximum Line Speed | 20 m/s | 20 m/s |
| Take-up Bobbin Size | Φ650 mm | Φ800 mm |
| Main Motor Power | AC 15 KW | AC 18.5 KW |
| Braking System | Pneumatic-Hydraulic Disc Brake | |
| Compressed Air Consumption | 0.4–0.6 MPa, 50 L/min | 0.4–0.6 MPa, 70 L/min |
| Max Copper Loading Capacity | Max 1000 KG | Max 1500 KG |
| Overall Dimensions (L×W×H) | 1800(L)×1500(W)×4800(H) mm | 2350(L)×1700(W)×4800(H) mm |
| Machine Weight | 5500 KG | 8000 KG |
