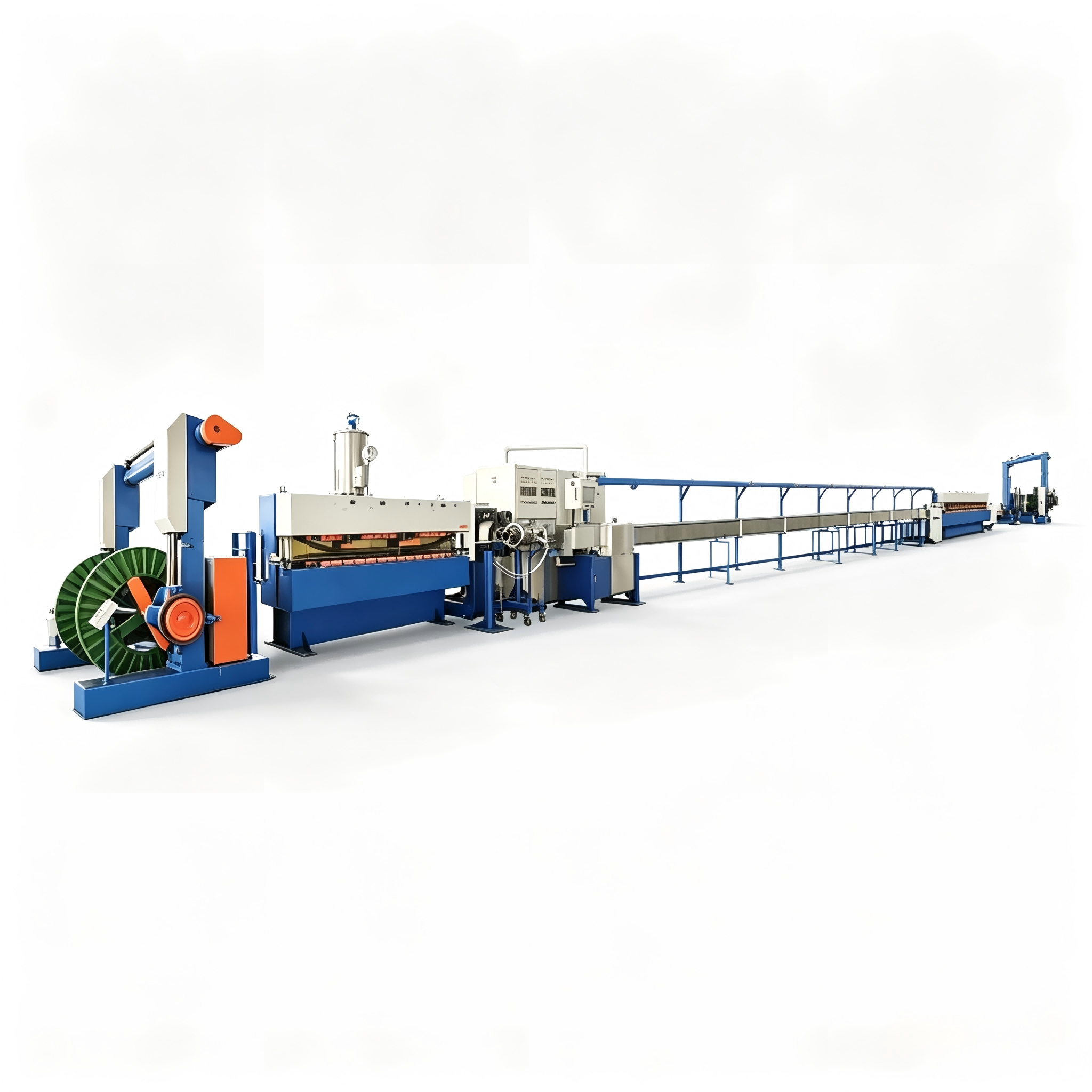

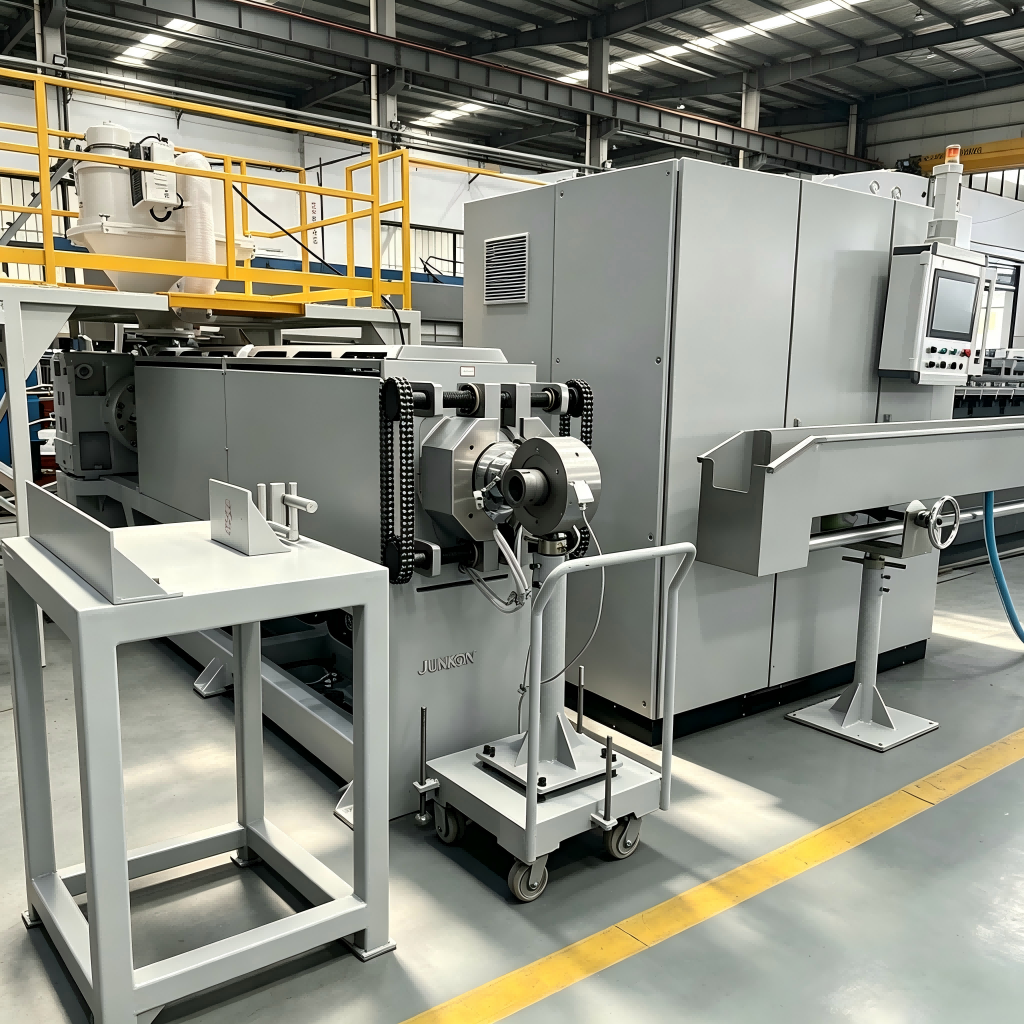

Cable Sheath Extruder
Featuring advanced technology, this extruder accurately coats PVC, LDPE, NYLON, TPU and other materials over cable cores or assembled cables to create protective, insulating, wear-resistant and weather-resistant sheaths. Built-in automatic control enables full-auto operation, minimizing manual work for higher production stability and uniform product quality.
Description
| Model | Screw Diameter (mm) | L/D Ratio | Rotational Speed (r/min) | Output (kg/h) | Main Motor Power (kW) | Finished Cable OD (mm) | Spool Diameter (mm) | Front Traction(m/min) | Rear Traction (m/min) | Line Speed (m/min) | Components |
| JK-70 Extrusion | Φ70 | 25:1 | 100 | 130 | 30 | 3-15 | 4-30 | 630-1250 | 800 | 5-200 | Pay-off / Straightening / Extrusion / Water-cooling Tank / Traction / Storage-loop / Take-up |
| JK-80 Extrusion | Φ80 | 25:1 | 95 | 180 | 75 | 3-20 | 4-40 | 800-1600 | 1250 | 5-180 | Pay-off / Straightening / Extrusion / Water-cooling Tank / Traction / Storage-loop / Take-up |
| JK-90 Extrusion | Φ90 | 25:1 | 90 | 280 | 90 | 3-35 | 4-45 | 800-1600 | 1250 | 10-150 | Pay-off / Straightening / Extrusion / Water-cooling Tank / Traction / Storage-loop / Take-up |
| JK-100 Extrusion | Φ100 | 25:1 | 85 | 330 | 110 | 4-50 | 5-60 | 1000-2000 | 1600 | 10-120 | Pay-off / Straightening / Extrusion / Water-cooling Tank / Traction / Storage-loop / Take-up |
| JK-120 Extrusion | Φ120 | 25:1 | 80 | 420 | 132 | 8-70 | 8-80 | 1250-2500 | 2000 | 10-90 | Pay-off / Straightening / Extrusion / Water-cooling Tank / Traction / Storage-loop / Take-up |
| JK-150 Extrusion | Φ150 | 25:1 | 70 | 780 | 160 | 8-100 | 15-120 | 1600-3150 | 2500 | 10-60 | Pay-off / Straightening / Extrusion / Water-cooling Tank – Traction / Storage-loop / Take-up |
| JK-200 Extrusion | Φ200 | 25:1 | 60 | 1000 | 250 | 30-140 | 35-145 | 1600-3150 | 3150 | 2-60 | Pay-off / Straightening / Extrusion / Water-cooling Tank / Traction / Storage-loop / Take-up |
Related products

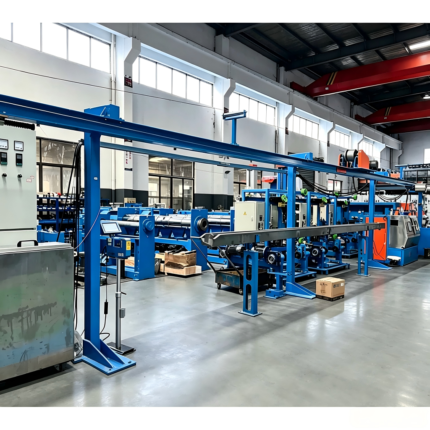

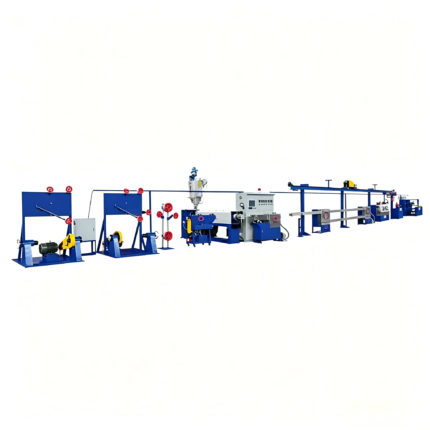

High‑speed insulating extrusion production line
